Understanding the 80% Maximum in Cord and Plug Connected Load to Receptacle

Electrical safety is crucial in both residential and commercial settings to prevent hazards such as overheating, equipment damage, and fires. A key safety guideline in electrical systems is the 80% maximum load rule for cord-and-plug connected devices to receptacles. This rule ensures that electrical circuits and components operate within safe limits, providing a buffer to accommodate continuous use and potential load variations. In this article, we will explore the reasons behind the 80% rule, its implications, and practical applications to enhance electrical safety.

What is the 80% Maximum Load Rule?

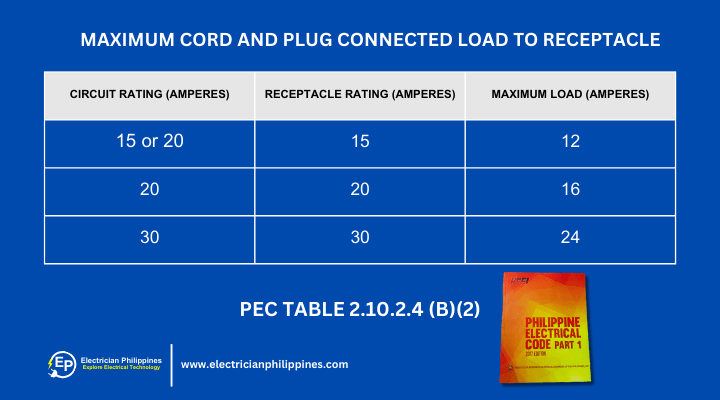

The 80% rule states that the continuous load on a receptacle or circuit should not exceed 80% of its rated capacity. This guideline applies to both the receptacles and the devices connected via cords and plugs. For example, if a receptacle is rated at 20 amps, the maximum continuous load should be no more than 16 amps (80% of 20 amps).

Definition of Continuous Load

A continuous load is defined as a load that runs for three hours or more without interruption. Examples of continuous loads include lighting systems, HVAC units, and certain industrial machinery that operate for extended periods. These sustained loads pose a greater risk of overheating and potential circuit failure.

Why the 80% Rule is Important

  1. Heat Dissipation:
    • Electrical components generate heat when current flows through them. Operating at full capacity for extended periods can cause excessive heat buildup, potentially leading to insulation breakdown and fire hazards. The 80% rule provides a safety margin to ensure adequate heat dissipation.
  2. System Longevity:
    • Continuous operation at maximum capacity can degrade electrical components over time. By limiting the load to 80%, the wear and tear on outlets, cords, and circuits is minimized, enhancing their longevity and reliability.
  3. Safety Margins:
    • Electrical systems are designed with built-in safety margins to handle unexpected surges or variations in load. The 80% rule ensures that there is a buffer to accommodate these fluctuations without tripping circuit breakers or causing overheating.
  4. Code Compliance:
    • The Philippine Electrical Code (PEC) and other international standards incorporate the 80% rule to ensure consistent safety practices. Compliance with these codes is essential for both residential and commercial installations to prevent electrical hazards.

Practical Applications of the 80% Rule

Residential Applications

In residential settings, the 80% rule is applied to general-purpose circuits and high-demand appliances:

  • Kitchen Appliances: Devices such as refrigerators, microwaves, and ovens should be connected to circuits with appropriate ratings, ensuring that the combined load does not exceed 80% of the circuit’s capacity.
  • HVAC Systems: Central air conditioning and heating systems should be wired to circuits designed to handle continuous loads, adhering to the 80% rule to prevent overloads during prolonged use.

Commercial and Industrial Applications

Commercial and industrial environments often have higher power demands and continuous operations:

  • Lighting Systems: Commercial lighting that operates for extended hours should be designed to stay within the 80% load limit, preventing overheating and ensuring safe operation.
  • Industrial Machinery: Heavy machinery with high power requirements should be connected to circuits rated for continuous loads, following the 80% rule to avoid electrical failures and hazards.

Extension Cords and Portable Devices

The 80% rule also applies to the use of extension cords and portable devices:

  • Extension Cords: When using extension cords, ensure that the combined load of connected devices does not exceed 80% of the cord’s rated capacity. Overloading extension cords can lead to overheating and potential fire risks.
  • Portable Heaters and Tools: High-draw devices such as space heaters and power tools should be used with caution, ensuring they do not exceed the capacity of the extension cords and outlets they are connected to.


Adhering to the 80% maximum load rule is a fundamental practice in electrical safety. It helps manage heat dissipation, ensures safety margins, prolongs the lifespan of electrical components, and maintains compliance with electrical codes. Whether in residential, commercial, or industrial settings, applying this rule prevents overloads, reduces the risk of electrical fires, and ensures a safer environment. Always consider the 80% rule when planning and operating electrical circuits to ensure a reliable and safe electrical system.

By understanding and implementing the 80% rule, users can significantly enhance the safety and efficiency of their electrical systems, protecting both property and lives from potential electrical hazards.
