Amps to Watts Conversion
Instructions on How to Use the Amps to Watts Conversion Calculator
The Amps to Watts conversion calculator is a versatile tool designed to help you convert electrical current (in amperes) to power (in watts) for various types of circuits, including DC, AC Single Phase, and AC Three Phase (Line to Line Voltage and Line to Neutral Voltage). Follow these steps to use the calculator effectively:
Steps to Use the Calculator:
- Enter the Current (A):
- Locate the input field labeled “Current (A)”.
- Enter the current value of your circuit in amperes (A).
- Ensure the value is numeric and accurate.
- Enter the Voltage (V):
- Locate the input field labeled “Voltage (V)”.
- Enter the voltage value of your circuit in volts (V).
- Ensure the value is numeric and accurate.
- Select the Phase Type:
- Locate the dropdown menu labeled “Phase”.
- Choose the appropriate phase type for your circuit:
- DC: Direct Current
- AC Single Phase: Alternating Current Single Phase
- AC Three Phase (Line to Line): Alternating Current Three Phase with Line to Line Voltage
- AC Three Phase (Line to Neutral): Alternating Current Three Phase with Line to Neutral Voltage
- Enter the Power Factor (Optional):
- For AC calculations, locate the input field labeled “Power Factor (Optional for AC)”.
- Enter the power factor value of your circuit.
- If no value is entered, the calculator assumes a default power factor of 1.
- Calculate the Watts (W):
- Click the “Calculate” button to perform the conversion.
- The calculator will use the entered values to compute the power in watts (W) based on the selected phase type.
- View the Result:
- After clicking “Calculate”, the power in watts will be displayed in the result box below the button.
- The result is formatted to two decimal places for clarity.
- Reset the Calculator:
- To clear all input fields and the result, click the “Reset” button.
- This action will reset the form, allowing you to start a new calculation with different values.
Example Usage:
- Example 1 (DC):
- Enter
10
for Current (A). - Enter
12
for Voltage (V). - Select
DC
for Phase. - Click “Calculate”.
- The result will display: “The power is 120.00 W”
- Enter
- Example 2 (AC Single Phase):
- Enter
15
for Current (A). - Enter
220
for Voltage (V). - Select
AC Single Phase
for Phase. - Enter
0.8
for Power Factor. - Click “Calculate”.
- The result will display: “The power is 2640.00 W”
- Enter
- Example 3 (AC Three Phase Line to Line):
- Enter
20
for Current (A). - Enter
400
for Voltage (V). - Select
AC Three Phase (Line to Line)
for Phase. - Enter
0.9
for Power Factor. - Click “Calculate”.
- The result will display: “The power is 12474.00 W”
- Enter
Important Notes:
- Ensure Accuracy: Make sure all inputs are accurate and in the correct units (A for current, V for voltage, and an appropriate value for the power factor if applicable).
- Phase Selection: Selecting the correct phase type is crucial for accurate calculations. Ensure you know whether your circuit is DC, AC Single Phase, or AC Three Phase.
- Power Factor: For AC circuits, entering an accurate power factor will provide a more precise power calculation. If unsure, use the default value of 1.
By following these steps, you can efficiently convert amperes to watts for various types of circuits using this user-friendly calculator. The reset button provides an easy way to clear the inputs and start new calculations. If you encounter any issues or have further questions, please consult additional resources or seek expert advice.

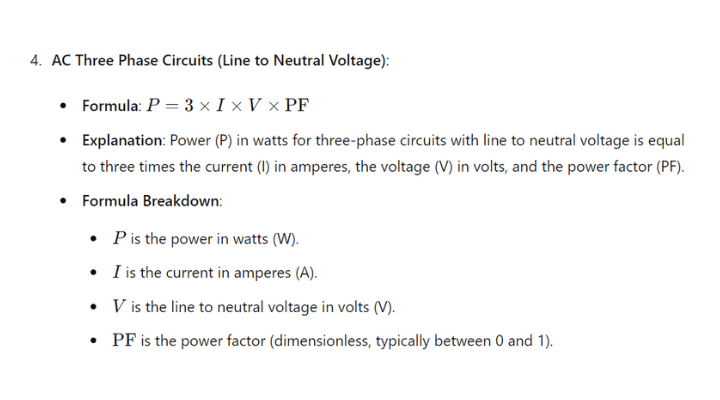

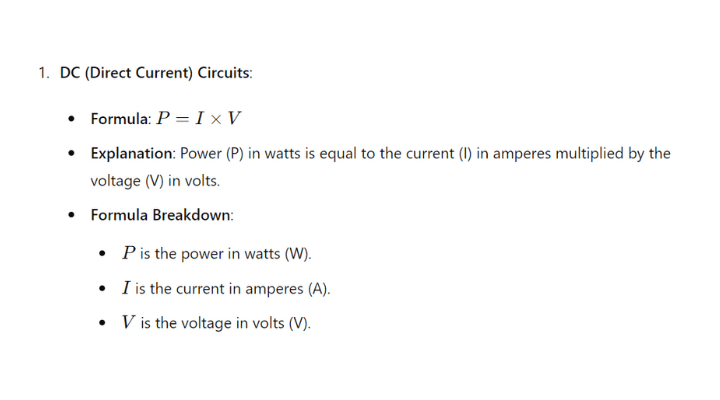

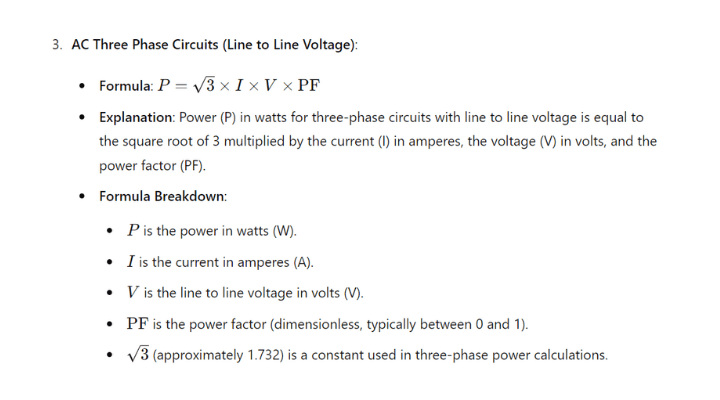

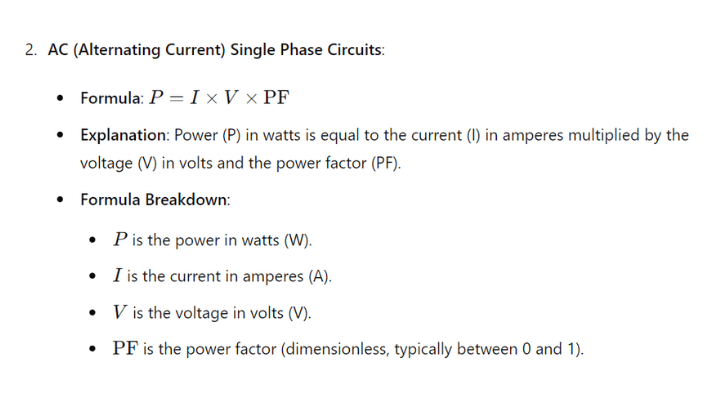

Formulas Used in Amps to Watts Conversion Calculator
The Amps-to-watts conversion calculator uses different formulas depending on the type of electrical circuit being analyzed. Here are the formulas for each type of circuit:

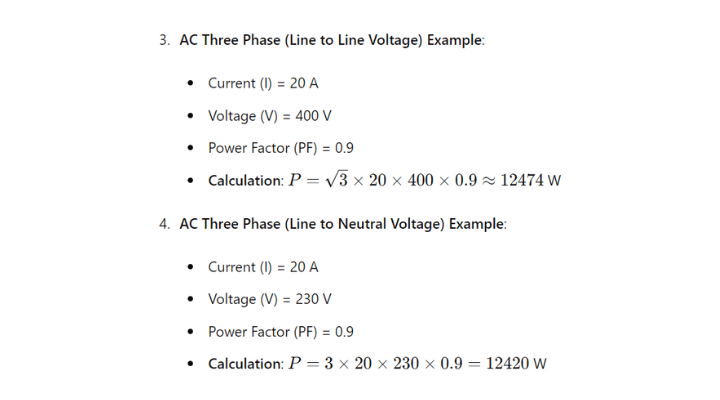

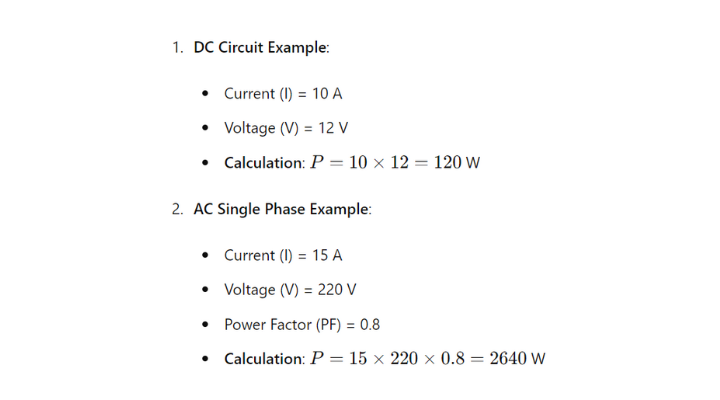

Example Calculations:
These formulas ensure accurate conversion from amperes to watts depending on the type of circuit. The inclusion of the power factor for AC circuits allows for precise calculations, reflecting real-world conditions where the power factor often deviates from 1.
