Bolt-On and Plug-In Circuit Breakers and Panel Boards: Differences and Applications

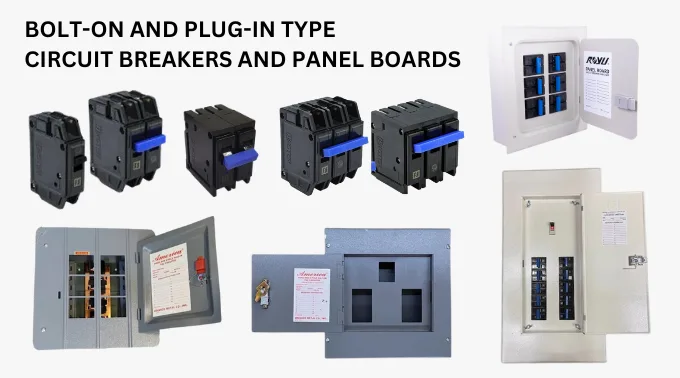

Understanding Bolt-On and Plug-In Circuit Breakers and Panel Boards

Circuit breakers are essential components in any electrical system, serving as protective devices that automatically interrupt electrical circuits in the event of a fault. In residential, commercial, and industrial installations, panel boards house these breakers to distribute and protect circuits. Two common types of circuit breakers used in panel boards are bolt-on and plug-in types. Understanding the differences between them, as well as their respective advantages and applications, is crucial for electrical professionals.

What Are Circuit Breakers?

Circuit breakers are devices designed to protect an electrical circuit from damage caused by overloads or short circuits. They detect faults and interrupt the flow of electricity to prevent potential damage to equipment or even fires. The two main installation methods for circuit breakers are:

1. Bolt-On Circuit Breakers
2. Plug-In Circuit Breakers

These installation methods define how the breakers connect to the panel boards, and each has distinct characteristics.

Bolt-On Circuit Breakers

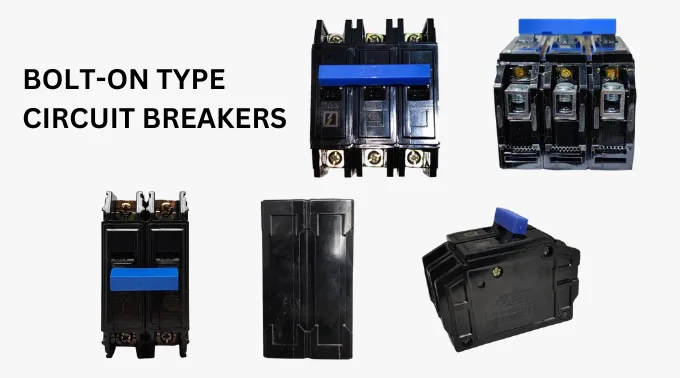

Bolt-on circuit breakers are physically attached to the panel board using bolts. This type of installation provides a secure and stable connection between the breaker and the panel board’s bus bar. The breakers are bolted directly onto the bus bars, ensuring a more permanent and robust mechanical connection.

Characteristics:

• Connection: Secured by bolts to the bus bar, resulting in a more reliable electrical connection.
• Stability: Less prone to movement or loosening over time, making them ideal for high-vibration environments.
• Applications: Commonly used in commercial and industrial settings where long-term reliability and durability are critical.
• Installation: Typically requires more time to install and may need specialized tools (screwdrivers, torque wrenches).
• Cost: Slightly more expensive than plug-in breakers due to the more complex installation process and stronger connections.

Advantages:

• Superior Durability: Bolt-on breakers are favored in situations where electrical installations are exposed to frequent vibrations or harsh conditions.
• Secure Connection: The bolted connection ensures that the breaker remains firmly attached, minimizing the risk of loose connections over time.
• Higher Current Ratings: These breakers tend to support higher current capacities, which is essential for industrial applications.

Disadvantages:

• Longer Installation Process: The bolt-on type requires more effort and time to install, which can be a drawback in residential or low-maintenance settings.
• Higher Initial Cost: Bolt-on breakers are generally more expensive than plug-in types.

Plug-In Circuit Breakers

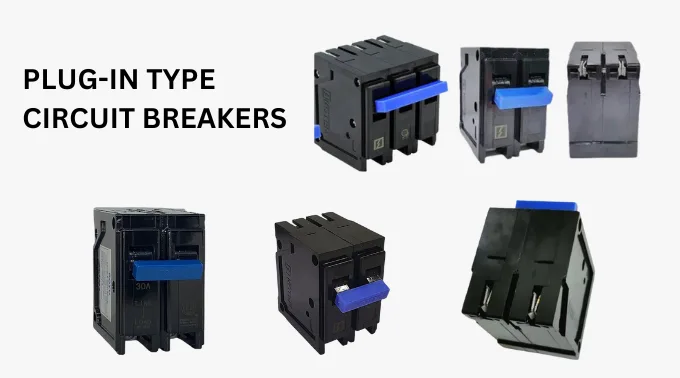

Plug-in circuit breakers snap into place on the panel board and connect to the bus bars via spring-loaded clips or stab-in connections. This design allows for easier installation and removal of the breakers, making plug-in breakers popular in residential and light commercial installations.

Characteristics:

• Connection: Snaps into place via spring-loaded clips that connect to the panel’s bus bar.
• Ease of Installation: Can be installed and removed without the need for additional tools, making them highly convenient for routine maintenance.
• Applications: Widely used in residential and light commercial settings where ease of installation and flexibility are desired.
• Cost: Generally cheaper than bolt-on types due to the simpler design and quicker installation process.

Advantages:

• Faster Installation: The plug-in feature allows for quicker and easier installation, saving time and labor costs.
• Lower Cost: Plug-in breakers tend to be more affordable than bolt-on types, making them attractive for budget-conscious projects.
• Flexibility: Ideal for applications where breakers may need to be frequently replaced or reconfigured.

Disadvantages:

• Less Secure Connection: Over time, plug-in breakers may become loose, especially in environments with vibrations, leading to potential issues with electrical connections.
• Limited Durability: While adequate for most residential applications, plug-in breakers may not be suitable for heavy-duty or industrial environments.
• Lower Current Ratings: These breakers are generally rated for lower currents, limiting their use in large-scale electrical systems.

Comparing Bolt-On and Plug-In Circuit Breakers

Featured Videos:

Ano ang Pagkakaiba ng BOLT-ON at PLUG-IN Circuit Breakers?

Gusto bang ma featured ang inyong mga electrical videos dito sa website ng Electrician Philippines, you may send it to us via [email protected]

Panel Boards for Bolt-On and Plug-In Breakers: Understanding Compatibility and Selection

Panel boards are crucial components in electrical distribution systems, serving as hubs for connecting circuit breakers that protect various circuits. When selecting a panel board, it’s essential to understand whether it’s compatible with bolt-on or plug-in circuit breakers. Each type of breaker has distinct characteristics that determine its performance, reliability, and ease of maintenance, which in turn affects the design and selection of the panel board.

What is a Panel Board?

A panel board is an assembly of electrical components, including bus bars and circuit breakers, enclosed in a metal housing. It serves to distribute electrical power to different circuits while providing overcurrent protection through circuit breakers.

Panel boards are typically divided into two categories based on the type of circuit breakers they accommodate:

1. Bolt-On Panel Boards
2. Plug-In Panel Boards

Bolt-On Panel Boards

Bolt-on panel boards are designed to accommodate bolt-on circuit breakers, which are attached to the bus bar with screws or bolts, providing a mechanically secure connection. This type of panel board is preferred for more demanding applications, where a stable and reliable electrical connection is crucial.

Key Features of Bolt-On Panel Boards:

1. Bus Bar Design:
   • The bus bars in bolt-on panel boards are threaded or include provisions for bolts to secure the circuit breakers directly to the panel. This ensures that the connection is tight and secure.
2. High Reliability:
   • Because the circuit breakers are bolted onto the bus bar, there is minimal risk of them becoming loose or disconnected over time. This makes bolt-on panel boards ideal for environments where vibration, shock, or other physical stresses could affect the integrity of electrical connections.
3. Application in Industrial Settings:
   • Bolt-on panel boards are commonly used in industrial and commercial settings, where equipment reliability is paramount, and electrical systems must handle high currents and harsh operating conditions.
4. Compatibility with Higher Current Ratings:
   • These panel boards often support higher current ratings and are capable of handling heavy electrical loads, making them suitable for factories, warehouses, and large commercial buildings.

Pros:

• Superior mechanical connection
• Increased durability and stability in demanding environments
• Suitable for high-current applications

Cons:

• Longer installation time
• Slightly higher cost than plug-in panel boards
• Requires tools for installation and maintenance

Plug-In Panel Boards

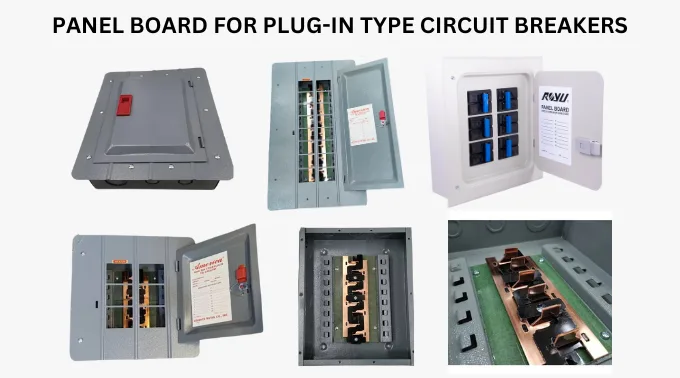

Plug-in panel boards are designed to accept plug-in circuit breakers, which are snapped or pressed into place using spring-loaded clips or stab-in connections. These panel boards are widely used in residential and light commercial applications due to the ease of installation and flexibility they offer.

Key Features of Plug-In Panel Boards:

1. Bus Bar Design:
   • The bus bars in plug-in panel boards have stab-type connections, allowing the breakers to be “plugged in” or snapped onto the bus bar without the need for bolts or additional fasteners. These connections are designed for quick, tool-free installation.
2. Ease of Installation:
   • The main advantage of plug-in panel boards is the reduced installation time. Circuit breakers can be easily added, replaced, or rearranged without the need for specialized tools, making maintenance and modifications simple and efficient.
3. Applications in Residential and Light Commercial Settings:
   • Plug-in panel boards are typically found in residential homes, apartment buildings, and small commercial properties. These environments often have lower electrical demands and fewer physical stresses, making the plug-in connection method more than adequate.
4. Lower Current Ratings:
   • Plug-in panel boards generally support lower current ratings compared to bolt-on boards. They are ideal for 100-400A service panels, commonly seen in homes and small businesses.

Pros:

• Faster installation with minimal tools
• Lower initial cost
• Easy to maintain and replace breakers

Cons:

• Less secure connection than bolt-on breakers
• Potential for loosening over time, especially in high-vibration areas
• Limited to lower current ratings

Selecting the Right Panel Board

Choosing the right panel board for your application depends on several factors, including:

1. Environment:
   • Bolt-on panel boards are ideal for environments with high vibration, industrial settings, or places where long-term reliability is critical.
   • Plug-in panel boards are well-suited for residential and light commercial buildings where electrical loads are lower, and ease of installation is a priority.
2. Current Rating:
   • Bolt-on breakers in their respective panel boards are better suited for higher current ratings, often found in industrial applications.
   • Plug-in breakers are typically rated for lower currents, making them perfect for residential and small business settings.
3. Maintenance and Upgrades:
   • If frequent maintenance, breaker replacement, or system upgrades are anticipated, plug-in panel boards offer ease of access and flexibility.
   • For long-term reliability and minimal maintenance, bolt-on panel boards provide a more secure connection.
4. Budget:
   • Plug-in panel boards are often more affordable upfront, while bolt-on panel boards may cost more but offer longer-term durability, particularly in demanding environments.

Conclusion

Both bolt-on and plug-in circuit breakers have unique advantages and specific use cases. Bolt-on breakers are the go-to choice for heavy-duty, industrial, and commercial applications where durability and stability are paramount. Plug-in breakers, on the other hand, offer convenience, ease of use, and cost savings for residential and light commercial projects.

Panel boards are a vital component of any electrical distribution system, and choosing the right type—whether for bolt-on or plug-in breakers—will directly impact the performance, durability, and ease of maintenance of the system. Bolt-on panel boards offer superior mechanical connections and are ideal for industrial applications, while plug-in panel boards provide faster installation and are better suited for residential or light commercial environments.

By considering the specific needs of your project—such as the environment, current ratings, ease of maintenance, and budget—you can choose the most appropriate panel board for your electrical system.

FAQs: Bolt-On vs. Plug-In Circuit Breakers and Panel Boards
