Devices Designed to Protect Against Electric Shock

The electric shock poses significant risks in residential, commercial, and industrial settings. Several devices have been developed to mitigate these dangers to protect against electric shock. These devices range from basic protective measures to advanced systems designed to safeguard lives and property. These devices are critical in residential, commercial, and industrial settings to ensure safety and prevent electrical accidents. This article explores the key devices that protect people against electric shock, focusing on their principles, applications, and effectiveness.

Advertisement

OMNI GFCI Duplex Safety Outlet in Graphite Plate 20A.

Available at Lazada.

Schneider Homeline UL 2-Pole 45A Plug-In Circuit Breaker 120/240V 10 KAIC.
Available at Lazada.

Understanding Electric Shock

Electric shock occurs when a person comes into contact with an electrical energy source, causing current to flow through the body. The severity of electric shock depends on several factors, including the current’s magnitude, the path it takes through the body, the duration of contact, and the body’s resistance. Even small currents can be dangerous, leading to injuries or fatalities.

To mitigate these risks, electrical safety devices are designed to detect abnormal conditions and disconnect the power supply before harm can occur.

Devices for Electric Shock Protection

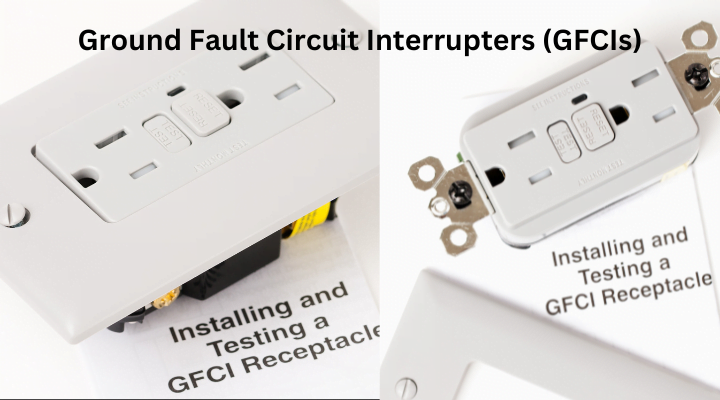

1. Ground Fault Circuit Interrupter (GFCI)

Principle and Operation

A Ground Fault Circuit Interrupter (GFCI) is a device designed to protect against electrical shock by detecting ground faults. A ground fault occurs when electricity flows through an unintended path to the ground, such as through a person. GFCIs monitor the current flowing through the hot and neutral wires and compare them. Under normal conditions, the currents are equal. If a ground fault occurs, the current in the hot wire will be higher than in the neutral wire. The GFCI detects this imbalance and quickly disconnects the circuit, typically within milliseconds.

Applications

GFCIs are commonly used in:

  • Bathrooms
  • Kitchens
  • Outdoor receptacles
  • Basements
  • Garages
  • Any location near water sources

Effectiveness

GFCIs are highly effective in preventing electric shock and are required by electrical codes in many countries, including the National Electrical Code (NEC) in the United States and the Philippine Electrical Code (PEC). They significantly reduce the risk of fatal electric shocks in wet or damp locations.

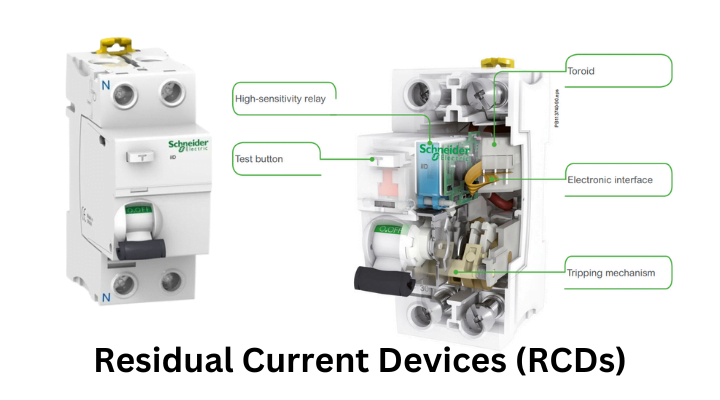

2. Residual Current Device (RCD)

Principle and Operation

A Residual Current Device (RCD) operates similarly to a GFCI, detecting differences between the live (hot) and neutral conductors. If an imbalance is detected, indicating that current is leaking to the ground, the RCD interrupts the circuit. RCDs are available in various sensitivity ratings, commonly 30mA for personal protection and 100mA or higher for fire protection.

Applications

RCDs are used in:

  • Residential electrical panels
  • Industrial installations
  • Portable devices
  • Extension leads

Effectiveness

RCDs are effective in protecting against electric shock and are widely used in Europe, Australia, and other regions. They provide a higher level of protection by covering multiple circuits or even the entire installation.

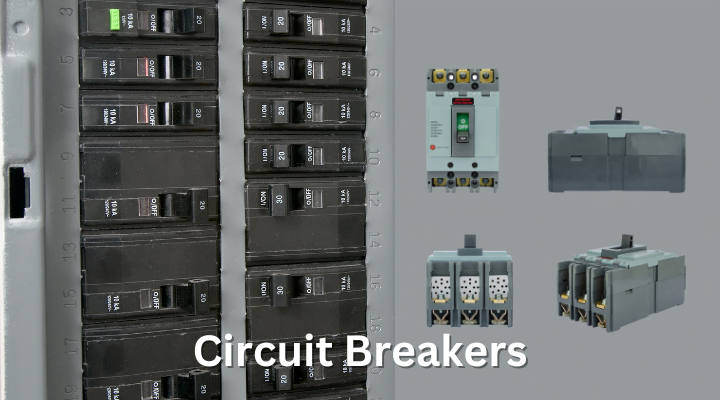

3. Circuit Breakers

Principle and Operation

Circuit breakers are designed to protect electrical circuits from overcurrent conditions, such as short circuits and overloads. They operate by detecting excessive current flow and automatically disconnecting the circuit to prevent damage to the wiring and connected devices. While their primary function is not to protect against electric shock, they can provide indirect protection by preventing conditions that could lead to electrical hazards.

Applications

Circuit breakers are used in:

  • Residential electrical panels
  • Commercial buildings
  • Industrial facilities

Effectiveness

Circuit breakers are highly effective in preventing electrical fires and equipment damage. However, for direct protection against electric shock, they should be used in conjunction with GFCIs or RCDs.

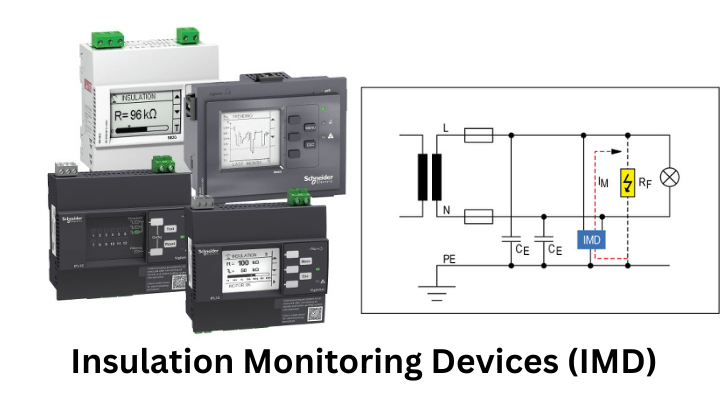

4. Insulation Monitoring Devices (IMD)

Principle and Operation

Insulation Monitoring Devices (IMD) continuously monitor the insulation resistance of ungrounded (IT) systems. They detect decreases in insulation resistance that could indicate a potential leakage path for current, which could lead to electric shock or fire. When a fault is detected, the IMD triggers an alarm, allowing maintenance personnel to address the issue before it becomes hazardous.

Applications

IMDs are used in:

  • Hospitals
  • Industrial plants
  • Data centers
  • Marine applications

Effectiveness

IMDs are effective in preventing electric shock and ensuring the safety of ungrounded systems. They provide early warning of insulation degradation, allowing for timely maintenance and repairs.

5. Personal Protective Equipment (PPE)

Principle and Operation

Personal Protective Equipment (PPE) includes various safety gear designed to protect individuals working with or near electrical systems. This equipment can include insulating gloves, arc flash suits, face shields, and insulating mats. PPE provides a physical barrier against electric shock and arc flash incidents.

Applications

PPE is used in:

  • Electrical maintenance
  • High-voltage installations
  • Arc flash risk environments

Effectiveness

PPE is highly effective in protecting individuals from electric shock and arc flash injuries when used correctly. Proper training and adherence to safety protocols are essential for maximizing the effectiveness of PPE.

Best Practices for Enhancing Electrical Safety

In addition to using the devices mentioned above, several best practices can further enhance electrical safety:

  1. Regular Inspections: Conduct regular inspections of electrical installations to identify potential hazards and ensure that safety devices are functioning correctly.
  2. Proper Grounding: Ensure that all electrical systems are properly grounded to provide a safe path for fault currents and prevent electric shock.
  3. Education and Training: Educate individuals on electrical safety practices and provide training on the correct use of safety devices and PPE.
  4. Maintenance: Perform routine maintenance on electrical systems and safety devices to ensure they remain in good working condition.
  5. Compliance with Standards: Adhere to relevant electrical codes and standards, such as the NEC and PEC, to ensure that electrical installations meet safety requirements.

Conclusion

Protecting people against electric shock is a critical aspect of electrical safety. Devices such as Ground Fault Circuit Interrupters (GFCIs), Residual Current Devices (RCDs), circuit breakers, Insulation Monitoring Devices (IMDs), and Personal Protective Equipment (PPE) play vital roles in mitigating the risks associated with electrical systems. By understanding the principles, applications, and effectiveness of these devices, individuals and organizations can implement effective safety measures to prevent electric shocks and ensure a safe environment. Regular inspections, proper grounding, education, maintenance, and compliance with electrical standards further enhance safety, creating a comprehensive approach to protecting people from electric shock.
