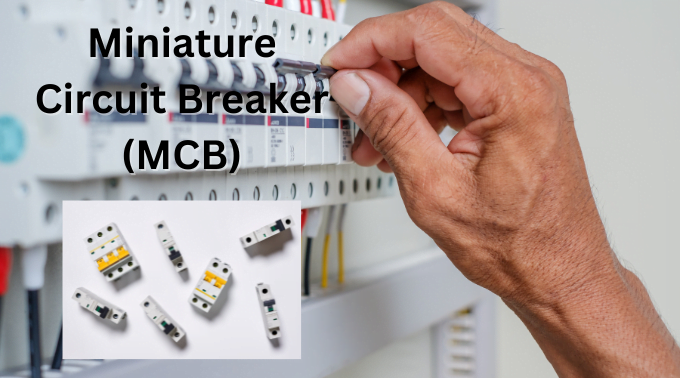

Different Types of MCB (Miniature Circuit Breaker) and Their Uses

What is an MCB (Miniature Circuit Breaker)?

A Miniature Circuit Breaker (MCB) is an automatic electrical switch designed to protect an electrical circuit from damage caused by overcurrent or short circuits. MCBs are essential safety devices in both residential and commercial electrical systems, ensuring that circuits operate within their safe current limits.

Key Functions of an MCB

  1. Overcurrent Protection:
    • MCBs are designed to automatically interrupt the flow of electricity when the current exceeds the rated capacity of the circuit. Overcurrent conditions can occur due to overloads, where too many devices are connected to a single circuit, or due to a short circuit, where the electrical flow is inadvertently diverted.
  2. Short Circuit Protection:
    • In the event of a short circuit, where a live conductor directly contacts a neutral or ground, causing a sudden surge of current, the MCB quickly trips, cutting off the power supply. This action helps to prevent potential damage to wiring, appliances, and the risk of fire.
  3. Manual Control:
    • An MCB can also be manually operated to turn a circuit on or off. This feature allows for maintenance, repair, or modification of the electrical system without the risk of electric shock.

How Does an MCB Work?

An MCB operates using two mechanisms: a thermal mechanism for overload protection and a magnetic mechanism for short-circuit protection.

  1. Thermal Mechanism (Overload Protection):
    • The thermal part of an MCB consists of a bimetallic strip. When the current flowing through the circuit exceeds the rated value, the bimetallic strip heats up and bends, eventually tripping the MCB and interrupting the circuit. The bending of the strip is slow, allowing the MCB to tolerate small overcurrents for a short duration, such as those caused by temporary surges when starting certain electrical devices.
  2. Magnetic Mechanism (Short Circuit Protection):
    • The magnetic component is designed to react instantly to high overcurrents caused by short circuits. When a short circuit occurs, the surge in current generates a magnetic field that pulls a lever within the MCB, causing it to trip immediately and disconnect the circuit.

Advantages of MCBs

  • Automatic Operation: MCBs automatically detect and respond to overcurrent conditions without requiring manual intervention.
  • Resettable: Unlike fuses, which must be replaced after they blow, MCBs can simply be reset by flipping the switch back to the “on” position.
  • Improved Safety: MCBs provide a higher level of safety compared to traditional fuses, as they are more reliable and have a quicker response time.
  • Long Lifespan: MCBs are durable and can handle multiple tripping and resetting cycles without losing effectiveness.
  • Customizable: MCBs come in various types and ratings, allowing them to be tailored to specific circuit requirements and applications.

Common Applications of MCBs

  • Residential Buildings: MCBs are widely used in homes to protect lighting circuits, power outlets, and appliances from overcurrents and short circuits.
  • Commercial Buildings: In commercial settings, MCBs are used to safeguard electrical equipment, lighting systems, and HVAC units.
  • Industrial Facilities: Industrial environments use MCBs to protect machinery, motors, and other heavy-duty equipment from electrical faults.

Understanding the Different Types of MCB (Miniature Circuit Breaker) and Their Uses

Miniature Circuit Breakers (MCBs) are essential components in electrical installations, designed to protect circuits from damage due to overcurrent or short circuits. They automatically switch off the electrical circuit when abnormal conditions arise, preventing potential hazards like fire and equipment damage. MCBs are widely used in residential, commercial, and industrial settings. In this article, we will delve into the different types of MCBs, their characteristics, and their specific applications.

Types of MCBs

MCBs can be classified based on various factors such as their trip characteristics, pole configuration, and rated current capacity. However, the most common classification is based on the trip curve, which defines how quickly the MCB will trip in response to overcurrent conditions.

1. Type B MCB

  • Trip Characteristics: Trips between 3 to 5 times the rated current.
  • Application: Type B MCBs are the most sensitive among the types, making them ideal for protecting circuits with resistive loads, such as lighting circuits, small appliances, and general household wiring. They are commonly used in residential installations where the likelihood of short circuits and high inrush currents is minimal.
  • Uses: Protecting light circuits, small domestic appliances, and general wiring in homes.

2. Type C MCB

  • Trip Characteristics: Trips between 5 to 10 times the rated current.
  • Application: Type C MCBs are designed to handle circuits with moderate inrush currents, such as those found in commercial and industrial environments. They are suitable for protecting inductive loads like motors, transformers, and fluorescent lighting systems.
  • Uses: Ideal for motor circuits, transformers, commercial lighting systems, and other inductive loads.

3. Type D MCB

  • Trip Characteristics: Trips between 10 to 20 times the rated current.
  • Application: Type D MCBs are used in circuits with high inrush currents, typically found in industrial settings. These MCBs are less sensitive compared to Type B and C, allowing them to handle heavy-duty equipment like large motors, welding machines, and x-ray machines without tripping unnecessarily.
  • Uses: Protecting heavy-duty industrial equipment, large motors, x-ray machines, and similar high inrush current applications.

4. Type K MCB

  • Trip Characteristics: Trips between 8 to 12 times the rated current.
  • Application: Type K MCBs are designed to protect circuits with inductive loads that have higher inrush currents than those managed by Type C. They are commonly used in industrial environments to protect motors, transformers, and other similar equipment.
  • Uses: Ideal for protecting industrial motors, transformers, and other inductive loads with moderate inrush currents.

5. Type Z MCB

  • Trip Characteristics: Trips between 2 to 3 times the rated current.
  • Application: Type Z MCBs are highly sensitive and are used in circuits with very low tolerance to short circuits and overcurrents, such as those in sensitive electronic devices. They are typically used in medical and IT environments where even a minor fluctuation in current can cause significant damage.
  • Uses: Protecting sensitive electronic equipment, IT systems, and medical devices.

Selecting the Right MCB for Your Application

When choosing an MCB, it is crucial to consider the nature of the load and the environment in which it will be used. Here are some key factors to consider:

  • Load Type: Resistive loads like lighting and heating systems require Type B MCBs, while inductive loads like motors and transformers are better protected by Type C or D MCBs.
  • Inrush Current: Consider the inrush current characteristics of the equipment. For example, motors and transformers typically have higher inrush currents, requiring Type C or D MCBs.
  • Environment: The environment (residential, commercial, or industrial) will influence the choice of MCB. Industrial environments often require Type D MCBs due to the heavy-duty equipment used.
  • Safety Standards: Ensure the MCB complies with local electrical safety standards, such as the Philippine Electrical Code (PEC) or IEC standards.

Reference: Schneider – MCB (Miniature Circuit Breakers) Guide – Types, Sizes, and Uses
