Electrical Safety: Understanding Electrical Signs

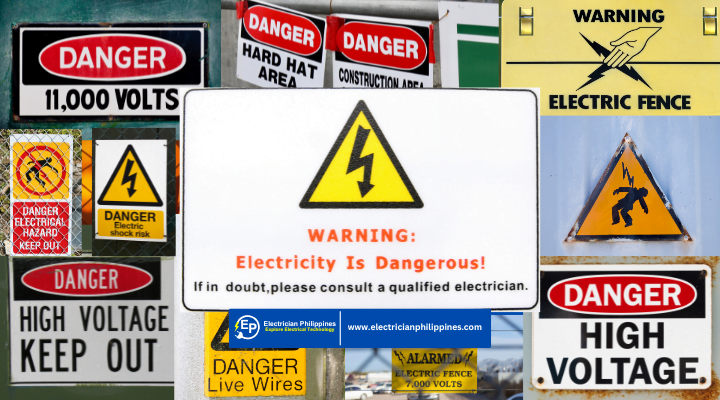

Electrical safety is paramount in both residential and industrial settings, as improper handling of electrical systems can lead to severe injuries or even fatalities. One of the key components in promoting electrical safety is the use of electrical signs. These signs play a crucial role in alerting individuals to potential hazards and providing instructions to prevent accidents. This article will delve into the various types of electrical signs, their meanings, regulations governing their use, and practical tips for ensuring electrical safety.

Types of Electrical Signs

Electrical signs are categorized based on the type of warning or information they convey. Here are the primary types:

1. Warning Signs

Warning signs indicate potential electrical hazards. They often use a yellow background with a black triangle and a lightning bolt symbol. These signs alert individuals to dangers such as high voltage, risk of electric shock, or electrical arcs. Examples include:

  • High Voltage: Warns about areas where high voltage is present, indicating the risk of severe electric shock or electrocution.
  • Electrical Hazard: General warning of potential electrical dangers in the vicinity.
  • Arc Flash Hazard: Alerts personnel to areas where arc flash risks are significant, requiring special protective measures.

2. Mandatory Signs

Mandatory signs provide instructions that must be followed to ensure safety. These signs typically have a blue background with white text or symbols. Examples include:

  • Wear Personal Protective Equipment (PPE): Instructs individuals to wear appropriate safety gear, such as gloves, goggles, or arc flash suits.
  • Disconnect Before Servicing: Reminds personnel to disconnect power before performing maintenance or repairs on electrical equipment.

3. Prohibition Signs

Prohibition signs indicate actions that are not allowed. They usually feature a red circle with a diagonal line through a black pictogram. Examples include:

  • No Entry: Indicates that unauthorized personnel are not allowed to enter the area, often used around electrical substations or control rooms.
  • Do Not Touch: Warns against touching specific equipment or areas, often due to live electrical components.

4. Information Signs

Information signs provide essential information without indicating immediate danger or mandatory actions. These signs often have a green background with white text. Examples include:

  • First Aid Kit: Indicates the location of first aid supplies, crucial in the event of an electrical injury.
  • Emergency Shutoff: Shows the location of emergency shutoff switches or buttons for quickly disconnecting power.

Importance of Electrical Signs

  • Prevention of Accidents
    • Electrical signs are critical in preventing accidents. They provide immediate visual cues about potential hazards, reducing the likelihood of accidental contact with live electrical parts.
  • Regulatory Compliance
    • In many regions, the use of electrical safety signs is mandated by law. Compliance with standards such as OSHA (Occupational Safety and Health Administration) in the United States or the OSHS (Occupational Safety and Health Standards) in the Philippines ensures that workplaces adhere to safety regulations, thereby minimizing the risk of legal consequences.
  • Education and Awareness
    • Electrical signs educate employees and the public about electrical hazards and safe practices. They serve as constant reminders of the importance of following safety protocols.
  • Regulations and Standards
    • Several standards and regulations govern the design, placement, and use of electrical signs. Understanding these regulations is crucial for ensuring that electrical signs are effective and legally compliant.
  • OSHA Standards
    • In the United States, OSHA sets forth guidelines for safety signs and symbols. These include specific requirements for color, wording, and placement to ensure maximum visibility and comprehension.
  • Philippine Electrical Code
    • The purpose of the Philippine Electrical Code is the practical safeguarding of persons and property from hazards arising from the use of electricity.
    • Electric Sign.
      • A fixed, stationary, or portable self-contained, electrically illuminated utilization equipment with words or symbols designed to convey information or attract attention.
  • ANSI Z535
    • The American National Standards Institute (ANSI) Z535 series provides detailed standards for the design and application of safety signs. This includes specifications for sign format, color codes, and symbol usage.
  • ISO 7010
    • Internationally, the ISO 7010 standard specifies graphical symbols for safety signs, ensuring consistency and recognition across different countries. This standard aims to reduce language barriers and improve global safety communication.

Practical Tips for Electrical Safety Using Signs

  • Proper Placement
    • Ensure that electrical signs are placed in highly visible locations, ideally at eye level and near the hazard or entry point. This placement increases the likelihood that individuals will see and heed the warning.
  • Regular Maintenance
    • Regularly inspect and maintain electrical signs to ensure they remain visible and legible. Replace any signs that are faded, damaged, or obscured by dirt or debris.
  • Training and Education
    • Incorporate electrical signs into safety training programs. Educate employees on the meanings of various signs and the actions they should take when encountering them.
  • Use of Appropriate Signs
    • Select the appropriate type of sign for each hazard. For example, use high voltage warning signs near transformers and mandatory PPE signs in areas where arc flash risks are present.
  • Emergency Preparedness
    • Ensure that information signs, such as those indicating the location of emergency shutoff switches or first aid kits, are clearly marked and easily accessible. This preparation is crucial in minimizing response time during an emergency.

Conclusion

Electrical signs are an indispensable component of electrical safety, providing critical information and warnings to prevent accidents and injuries. By understanding the different types of electrical signs, adhering to regulatory standards, and implementing best practices for their use, organizations can significantly enhance their safety protocols. Regular training and maintenance further ensure that these signs remain effective in promoting a safe environment for everyone.
