Guide to Electrical Grounding: Understanding Grounded Conductor (Neutral), Main Bonding Jumper, Grounding Electrode Conductor (GEC), and Equipment Grounding Conductor (EGC)

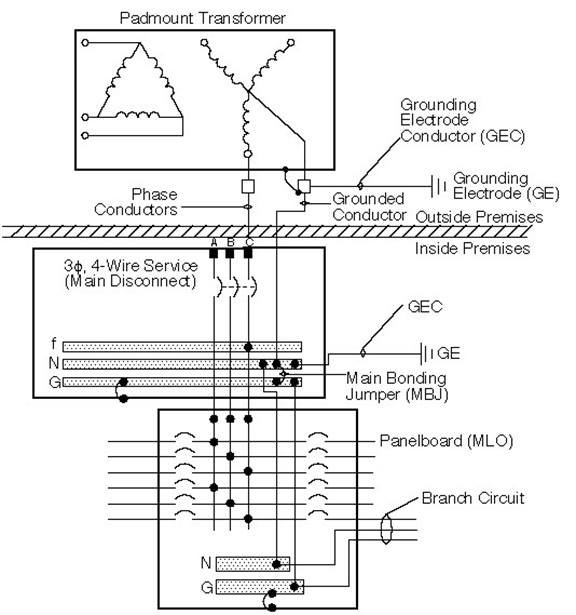

Electrical grounding is a fundamental aspect of ensuring safety and proper functioning within electrical systems. In this comprehensive guide, we will explore the critical components of electrical grounding, the grounded conductor (neutral), main bonding jumper, grounding electrode conductor (GEC), and equipment grounding conductor (EGC). By the end of this article, you’ll gain a thorough understanding of these elements and their roles in maintaining a safe and efficient electrical system.

What is a Grounded Conductor (Neutral)?

The grounded conductor, commonly known as the neutral wire in electrical systems, plays a crucial role in providing a return path for electric current. In a typical electrical circuit, you have a hot wire that carries the current from the power source to the load, and the neutral wire completes the circuit by allowing the current to return.

Here are some key points about the grounded conductor (neutral):

  1. Purpose of the Neutral Wire:
    • The primary function of the neutral wire is to carry the current back to the source, usually a transformer or a generator, completing the electrical circuit.
    • It is called the “neutral” because, ideally, it should have a voltage close to zero, representing a balanced electrical system.
  2. Color Coding:
    • In standard electrical wiring, the neutral wire is often color-coded white or gray. This helps electricians and individuals identify and distinguish it from hot wires.
  3. Connection to Ground:
    • While the neutral is grounded at the service entrance of a building, it’s important to note that it is not connected to the earth throughout the entire electrical system. The grounding is typically done at the main service panel.
  4. Voltage Characteristics:
    • The voltage on the neutral wire is expected to be very close to zero under normal conditions. However, voltage imbalances or “voltage drop” can occur in practical scenarios due to various factors such as resistance in the wiring.
  5. Importance in Electrical Safety:
    • The grounded conductor is crucial for electrical safety. It provides a low-resistance path for fault currents to flow, facilitating the operation of overcurrent protection devices like circuit breakers or fuses in the event of a short circuit.
  6. Distinguishing from Grounding Conductor:
    • It’s essential to distinguish between the neutral wire and the equipment grounding conductor. The grounding conductor is a safety feature that provides a path for fault currents to the ground in case of a fault in the electrical system.
  7. Issues and Troubleshooting:
    • Problems with the neutral connection can lead to issues like voltage fluctuations, equipment damage, and safety hazards. It’s crucial to address any neutral-related issues promptly to ensure the proper functioning of the electrical system.

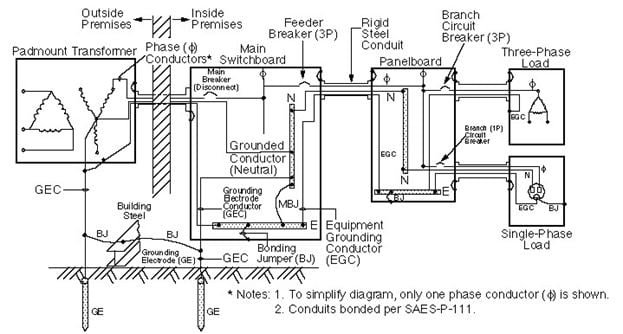

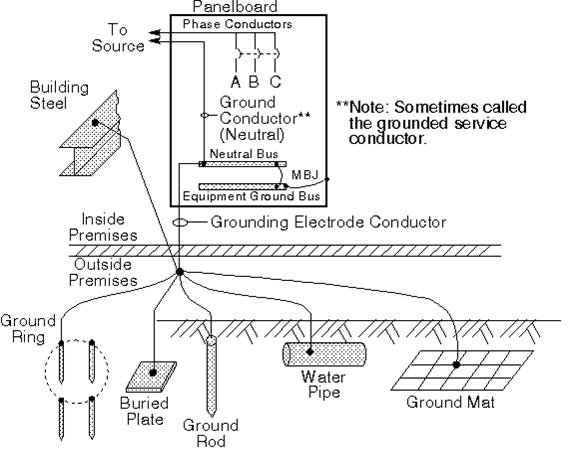

What is Grounding Electrode Conductor (GEC)?

The Grounding Electrode Conductor is a vital component of the grounding system in electrical installations. Its primary purpose is to connect the grounding electrode to the grounded (neutral) conductor at the service equipment or the source of a separately derived system.

Understanding Grounding Electrode Conductor (GEC)

Significance of GEC

  1. Safety Assurance: The GEC is instrumental in providing a low-impedance path for fault currents, facilitating the operation of overcurrent protection devices in the event of a ground fault. This enhances safety by quickly clearing faults and minimizing the risk of electrical shock.
  2. Equipment Protection: Proper grounding with the GEC helps protect electrical equipment and appliances by directing fault currents away from them, preventing potential damage.

Installation and Best Practices

1. Sizing of GEC:

  • The National Electrical Code (NEC) provides guidelines for sizing the GEC based on the size of the service or system.

2. Material Selection:

  • Copper and aluminum are common choices for GEC material. The selection depends on factors such as cost, conductivity, and environmental conditions.

3. Routing and Bonding:

  • The GEC should be routed in a way that minimizes bends and turns, ensuring a straightforward path for fault currents. Proper bonding of metallic components ensures continuity.

4. Connection to Grounding Electrode:

  • Secure and corrosion-resistant connections to grounding electrodes, such as ground rods or plates, are crucial for effective grounding.

Practical Tips and Insights

1. Soil Resistance:

  • Consider the soil resistance when selecting and installing grounding electrodes. Different soil conditions can impact the effectiveness of the grounding system.

2. Periodic Inspections:

  • Regular inspections of the GEC and grounding system help identify and address issues promptly, ensuring continued effectiveness.

3. Coordination with Lightning Protection:

  • In areas prone to lightning, coordination between the GEC and lightning protection systems is essential for comprehensive safety.

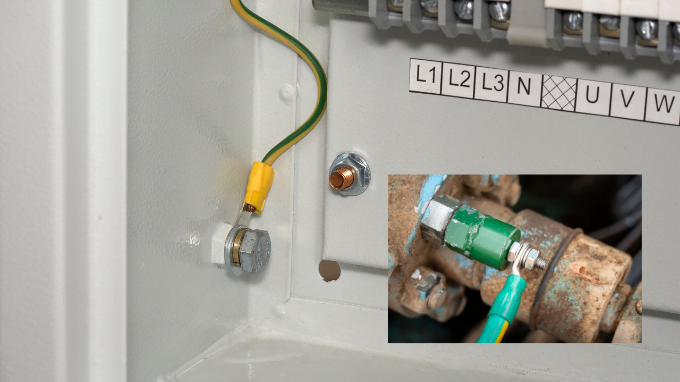

What is an Equipment Grounding Conductor (EGC)?

The Equipment Grounding Conductor (EGC) plays a crucial role in ensuring electrical safety within a system. In electrical installations, the EGC is a conductor that connects the non-current-carrying metal parts of equipment, raceways, and other enclosures to the system’s grounding electrode or electrodes. Its primary purpose is to provide a low-impedance path for fault currents to flow in the event of a ground fault, facilitating the operation of overcurrent protective devices such as circuit breakers or fuses.

Here are some key aspects and functions of the Equipment Grounding Conductor:

  1. Safety and Protection:
    • The EGC helps protect against electric shock by providing a path for fault currents to safely dissipate into the ground, reducing the risk of injury to individuals and preventing equipment damage.
  2. Bonding:
    • It establishes a bonding connection between metal components of electrical equipment, raceways, and enclosures. This bonding helps prevent potential differences that could lead to dangerous conditions.
  3. Fault Current Path:
    • In the event of a ground fault, where a live conductor comes into contact with a conductive surface, the EGC provides a low-resistance path for fault currents to flow, ensuring the quick operation of protective devices.
  4. Compliance with Codes and Standards:
    • The installation of Equipment Grounding Conductors is mandated by electrical codes and standards to ensure the safety of electrical systems. Compliance with these regulations is essential for any electrical installation.
  5. Types of EGC:
    • The EGC can be a separate conductor or a metallic sheath or armor of a cable, depending on the wiring method. It’s important to choose the appropriate type based on the specific requirements of the installation.
  6. Sizing and Installation:
    • The size of the EGC is determined based on the size of the circuit conductors it is protecting. Proper installation methods, including secure connections and routing, are crucial for the effectiveness of the grounding system.
  7. Continuity and Testing:
    • Ensuring the continuity of the Equipment Grounding Conductor throughout the electrical system is vital. Regular testing and inspection help identify and address any issues that may arise over time.
  8. Role in Grounding Systems:
    • The EGC is an integral part of the overall grounding system, which includes grounding electrodes, grounding conductors, and bonding. Together, these components work to create a safe and effective path for fault currents.

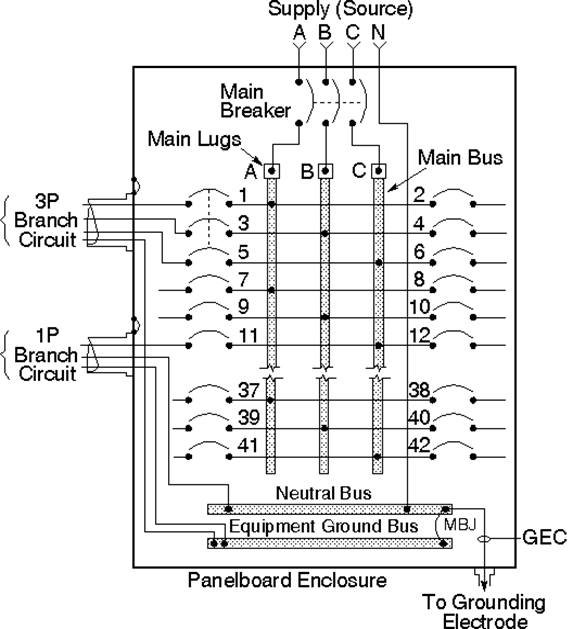

What is the Main Bonding Jumper?

The Main Bonding Jumper (MBJ) plays a crucial role in ensuring electrical safety within a building’s electrical system. In the context of electrical installations, bonding refers to the connection of metal parts to establish a continuous electrical path, thereby preventing potential differences that could lead to electric shock or fire hazards. The MBJ is a key component of this bonding system.

Here are the essential aspects of the Main Bonding Jumper:

Definition:

The Main Bonding Jumper is a conductor or a metallic connection that establishes the electrical bond between the main earthing terminal and the main equipotential bonding point. In simpler terms, it ensures that all the exposed conductive parts within an installation are at the same electrical potential, which is typically the same as the Earth.

Purpose:

  1. Electrical Safety:
    • Prevents potential differences: The MBJ helps in equalizing the electrical potential between various metal parts within the electrical installation, reducing the risk of electric shock.
    • Minimizes fire hazards: By ensuring that all metal components are at the same potential, the likelihood of arcing and sparking is reduced, thus minimizing the risk of fire.
  2. Equipment Protection:
    • Ensures proper functioning: The MBJ helps in maintaining the electrical continuity of metal parts, ensuring that electrical equipment and appliances function as intended.

Installation:

The Main Bonding Jumper is typically installed at the service entrance, connecting the main earthing terminal to the main equipotential bonding point. This bonding point is often associated with the main distribution board.

Key Considerations:

  1. Material:
    • The MBJ is often made of copper or aluminum, materials known for their excellent conductivity and corrosion resistance.
  2. Sizing:
    • The size of the Main Bonding Jumper is determined by the size of the main earthing conductor and is usually calculated according to relevant electrical standards.
  3. Connection:
    • Proper and secure connections are crucial to ensure the effectiveness of the bonding system. Compression or mechanical connectors are commonly used for this purpose.
