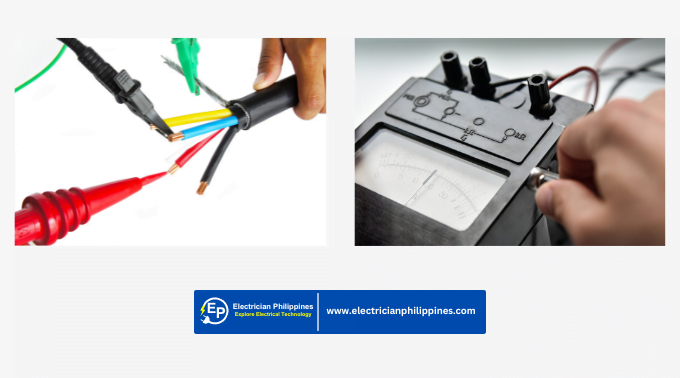

Guide To Insulation Resistance Testing

The Insulation Resistance (IR) Test is a critical assessment in electrical engineering, widely used to ensure the integrity and safety of electrical systems. This test measures the resistance offered by electrical insulation to the flow of current, helping to prevent electrical failures, equipment damage, and safety hazards. Understanding the principles, procedures, and applications of the insulation resistance test is essential for maintaining the reliability of electrical installations.

Why Insulation Resistance Testing is Important

Insulation resistance testing is vital for several reasons:

1. Safety Assurance: Insufficient insulation can lead to electrical shocks, short circuits, and fire hazards. By identifying weak insulation, the IR test helps prevent accidents and ensures that equipment operates safely.
2. Preventive Maintenance: Regular IR testing allows early detection of insulation degradation, enabling timely maintenance before severe faults occur. This proactive approach extends the lifespan of electrical equipment and minimizes downtime.
3. Compliance with Standards: Insulation resistance testing is often mandated by electrical codes and standards, such as the IEC, IEEE, and Philippine Electrical Code (PEC). Adhering to these standards ensures that installations meet legal and safety requirements.
4. Quality Control: During manufacturing, IR testing ensures that electrical equipment meets quality specifications before being deployed.

Basic Principle of Insulation Resistance Testing

The insulation resistance test is based on Ohm’s Law, which states that resistance (R) is the ratio of voltage (V) to current (I):

R =  V​
     I

During the test, a high DC voltage is applied between the conductors and the insulation material, and the resulting current is measured. The insulation resistance is then calculated using the above formula. A high insulation resistance indicates good insulation quality, while low resistance suggests potential insulation failure.

Types of Insulation Resistance Tests

1. Spot Reading Test: This is a quick test where a DC voltage is applied for a short duration, typically one minute. The insulation resistance value is then recorded. It is suitable for routine testing.
2. Time-Resistance Method (Polarization Index – PI Test): This method involves measuring insulation resistance at two different times, usually 1 minute and 10 minutes. The ratio of the two readings (PI value) helps assess the insulation condition. A PI value of 2.0 or higher typically indicates good insulation.
3. Step Voltage Test: This test involves applying increasing voltage levels in steps (e.g., 500V, 1000V, 1500V) and recording the insulation resistance at each step. A decreasing resistance with increasing voltage may indicate insulation weakness.
4. Dielectric Absorption Ratio (DAR): Similar to the PI test, the DAR is calculated by dividing the one-minute resistance value by the 30-second value. A DAR value of 1.25 or higher is considered acceptable.

Procedure for Insulation Resistance Testing

1. Preparation:
   • Ensure Safety: Disconnect the equipment from the power supply and discharge any stored energy.
   • Clean Connections: Remove dust, moisture, or contaminants from the test points to avoid inaccurate readings.
2. Connection:
   • Connect the insulation resistance tester’s leads to the conductors or equipment terminals.
   • The high voltage lead should be connected to the conductor under test, and the other lead to the ground or adjacent conductor.
3. Testing:
   • Select the appropriate test voltage based on the equipment rating (typically 500V, 1000V, 2500V, or 5000V for high-voltage equipment).
   • Apply the voltage and observe the insulation resistance reading.
4. Analysis:
   • Compare the readings with the manufacturer’s specifications or standard guidelines.
   • High insulation resistance (typically in the megohms range) is desirable, while low resistance indicates potential insulation problems.
5. Documentation:
   • Record the results, test conditions, and any observations. This data is crucial for future reference and trend analysis.

Applications of Insulation Resistance Testing

Insulation resistance testing is used across various industries and applications, including:

• Electrical Installations:
  • Ensures that wiring and components in buildings, industrial facilities, and other structures are safe and meet code requirements.
• Motors and Generators:
  • Verifies that the windings are properly insulated to prevent electrical faults.
• Transformers:
  • Confirms the integrity of insulation between the windings and the core.
• Cables:
  • Tests insulation on power and communication cables to ensure they are free from defects.
• Switchgear and Circuit Breakers:
  • Ensures that these devices will operate safely under load conditions without insulation failure.

Factors Affecting Insulation Resistance

Several factors can influence the results of an insulation resistance test:

1. Temperature: Insulation resistance decreases with increasing temperature. It’s essential to consider the temperature when interpreting the results and apply correction factors if necessary.
2. Moisture: Moisture ingress can significantly reduce insulation resistance. Testing should be done under dry conditions whenever possible.
3. Contamination: Dirt, dust, and other contaminants can cause surface leakage currents, leading to lower resistance readings.
4. Age of Insulation: Over time, insulation materials degrade, leading to lower resistance. Aging effects should be factored into the analysis.

Standards and Guidelines

Insulation resistance testing is guided by various standards, including:

• IEEE Std. 43: Provides guidelines for testing the insulation resistance of rotating machinery.
• IEC 60034-27: Specifies methods for measuring the insulation resistance of electrical rotating machines.
• Philippine Electrical Code (PEC): Outlines the minimum requirements for insulation resistance in various installations.

These standards provide the test procedures, recommended voltage levels, and acceptable resistance values for different types of equipment.

Interpreting Insulation Resistance Test Result

Interpreting the results of an Insulation Resistance (IR) Test is crucial in assessing the condition of electrical insulation. The following guidelines can help determine whether an insulation resistance value is considered “good” or “failed” based on typical standards and industry practices.

Good Insulation Resistance Test Results

• High Resistance Values:
  • Generally, for low-voltage equipment (below 1,000V), a good insulation resistance value is typically 1 megohm (MΩ) or higher.
  • For medium and high-voltage equipment, such as motors and transformers, the acceptable insulation resistance is often in the tens or hundreds of megohms. For example, 100 MΩ or higher is often considered a strong indication of good insulation.
  • New equipment might exhibit very high insulation resistance, sometimes in the gigaohms (GΩ) range.
• Polarization Index (PI) and Dielectric Absorption Ratio (DAR):
  • A PI value of 2.0 or higher is generally considered a good result, indicating stable and strong insulation.
  • A DAR value of 1.25 or higher is also typically seen as acceptable.
• Steady Readings:
  • During the test, if the insulation resistance remains steady or increases over time, it generally indicates good insulation. An increasing resistance is a sign of insulation absorbing the test voltage properly and exhibiting strong dielectric properties.

Failed Insulation Resistance Test Results

• Low Resistance Values:
  • For low-voltage equipment, an insulation resistance below 1 MΩ is often considered unsatisfactory and could indicate a failed test.
  • For medium and high-voltage equipment, resistance values below 100 MΩ (or even higher, depending on the equipment specifications) may be a cause for concern.
  • Extremely low values, such as in the kilohms (kΩ) or below, are almost certainly indicative of failed insulation and a high risk of electrical leakage or short circuits.
• Low PI and DAR Values:
  • A PI value below 1.0 often suggests deteriorated or contaminated insulation, possibly leading to failure.
  • A DAR value below 1.25 is typically considered poor, indicating that the insulation is not adequately polarizing under the applied voltage, which may point to moisture ingress, contamination, or aging.
• Decreasing Readings:
  • If the insulation resistance decreases significantly over the duration of the test, it indicates that the insulation is not holding up well under the applied voltage, which is a sign of potential failure.

Factors to Consider

• Temperature Correction: Insulation resistance values decrease with higher temperatures. Therefore, it’s essential to correct readings to a standard temperature (usually 20°C or 40°C) for accurate interpretation.
• Equipment Specifications: Manufacturer guidelines often specify the minimum acceptable insulation resistance for specific equipment. These values should always be referenced in addition to general industry guidelines.
• Aging and Degradation: Older equipment naturally has lower insulation resistance due to aging. However, values that fall significantly below the manufacturer’s recommendations or historical data for similar equipment should be addressed.
