How to Use the kVA to Amps Conversion Calculator:

1. Enter the Apparent Power (kVA):
   • Input the apparent power in kilovolt-amperes (kVA) in the provided field.
2. Enter the Voltage (V):
   • Input the voltage in volts (V) in the provided field.
3. Select the Phase:
   • Choose the appropriate phase type from the dropdown menu:
     • AC Single Phase
     • AC Three Phase (Line to Line Voltage)
     • AC Three Phase (Line to Neutral Voltage)
4. Calculate the Current (A):
   • Click the "Calculate" button to perform the conversion.
   • The calculated current in amperes (A) will be displayed in the result box.
5. Reset the Calculator:
   • Click the "Reset" button to clear all inputs and reset the result.

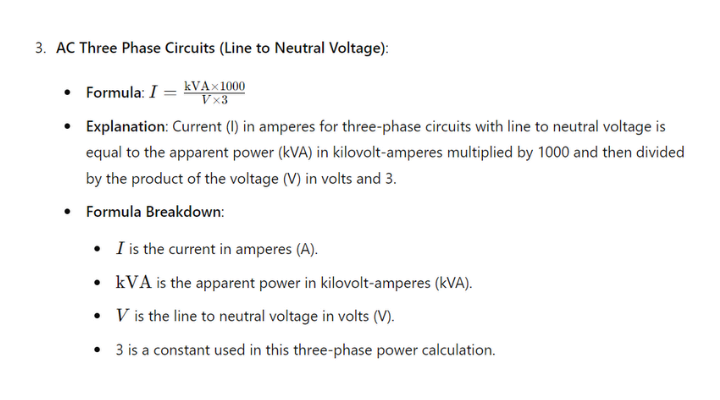

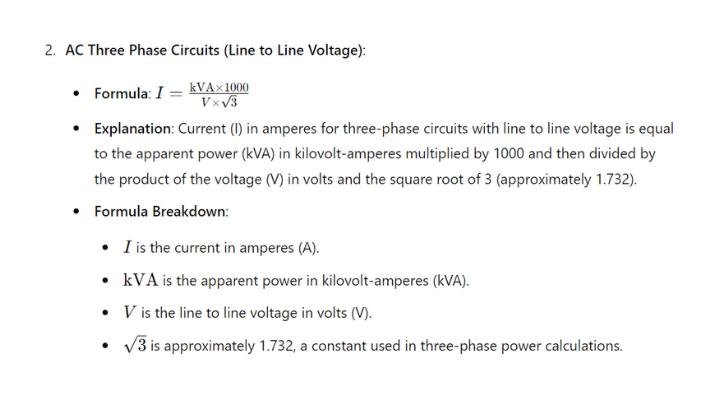

Formulas Used in kVA to Amps Conversion Calculator

The conversion from kilovolt-amperes (kVA) to amperes (A) depends on the type of AC electrical circuit: AC Single Phase, AC Three Phase (Line to Line Voltage), and AC Three Phase (Line to Neutral Voltage). Here are the formulas for each type:

Example Calculations:
