Overcurrent and Protection Against Overcurrent

Overcurrent is a critical issue in electrical systems, posing significant risks to equipment, infrastructure, and human safety. It occurs when the current flowing through a circuit exceeds the design limits, potentially leading to overheating, fires, and equipment damage. Understanding overcurrent and implementing effective protection mechanisms is essential for maintaining the reliability and safety of electrical systems. This article delves into the nature of overcurrent, its causes, and the various protection methods used to safeguard electrical systems against its detrimental effects.

Understanding Overcurrent

Definition and Types of Overcurrent

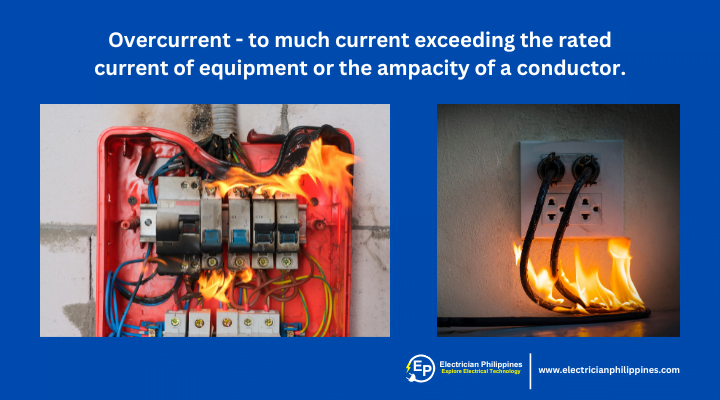

Overcurrent is defined as any current exceeding the rated current of equipment or the ampacity of a conductor. It can be categorized into two primary types:

  1. Overload: This type of overcurrent occurs when a circuit is subjected to an electrical load that exceeds its capacity for an extended period. Overloads can be caused by adding too many devices to a single circuit or a mechanical issue in equipment, such as a motor bearing failure.
  2. Short Circuit: A short circuit happens when there is a low-resistance connection between two conductors supplying electrical power to a circuit. This can result in a sudden surge of current that is many times higher than the normal operating current. Short circuits can be caused by insulation failure, improper wiring, or physical damage to conductors.

Causes of Overcurrent

  • Excessive Load: Connecting too many electrical devices to a single circuit can cause the circuit to draw more current than it is designed to handle.
  • Faulty Equipment: Malfunctioning devices can draw excessive current, leading to overcurrent conditions.
  • Wiring Issues: Poorly installed or damaged wiring can result in short circuits or ground faults.
  • Environmental Factors: Conditions such as high temperatures or humidity can degrade insulation, leading to short circuits.
  • Human Error: Mistakes in wiring, such as improper connections, can also cause overcurrent situations.

Effects of Overcurrent

The consequences of overcurrent can be severe, impacting both safety and functionality:

  • Heat Generation: Excessive current can cause conductors to overheat, leading to insulation damage and potential fire hazards.
  • Equipment Damage: Overcurrent can cause severe damage to electrical components, reducing their lifespan or rendering them inoperative.
  • Power Outages: In severe cases, overcurrent can trip circuit breakers or blow fuses, leading to power outages and system downtime.
  • Fire Risk: Overheated conductors and damaged insulation can ignite fires, posing significant safety risks.

Protection Against Overcurrent

Effective protection against overcurrent involves the use of various devices and strategies designed to detect and interrupt excessive currents before they cause harm. The primary protective devices include fuses, circuit breakers, and relays.

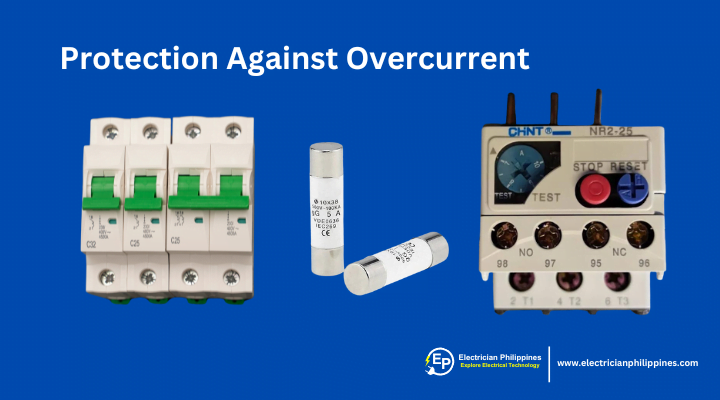

A fuse is a simple yet effective overcurrent protection device. It consists of a metal wire or strip that melts when excessive current flows through it, thereby interrupting the circuit. Fuses are classified into different types based on their speed of operation and application:

  • Fast-Acting Fuses: These fuses respond quickly to overcurrent conditions, providing immediate protection to sensitive equipment.
  • Time-Delay Fuses: Designed to tolerate temporary surges, such as motor startup currents, without blowing.

Circuit Breakers

Circuit breakers are mechanical devices that automatically interrupt the flow of current when an overcurrent condition is detected. They offer the advantage of being resettable, unlike fuses, which need to be replaced once they blow. Circuit breakers come in various types, including:

  • Thermal Circuit Breakers: Operate based on the heat generated by the overcurrent. A bimetallic strip bends when heated, triggering the breaker.
  • Magnetic Circuit Breakers: Use an electromagnet that activates when the current exceeds a certain threshold, opening the breaker.
  • Thermomagnetic Circuit Breakers: Combine thermal and magnetic mechanisms to provide comprehensive protection against both overloads and short circuits.


Protective relays are advanced devices used in conjunction with circuit breakers to provide overcurrent protection, especially in industrial and high-voltage applications. They detect abnormal conditions and signal the circuit breaker to open the circuit. Types of relays include:

  • Overcurrent Relays: Detect and respond to excessive current.
  • Differential Relays: Compare the current entering and leaving a system, tripping the circuit breaker if a discrepancy indicates a fault.
  • Distance Relays: Measure the impedance between the relay and the fault, providing protection based on the distance to the fault.

Coordination and Selectivity

In complex electrical systems, it is crucial to ensure that only the affected portion of the system is disconnected during an overcurrent event. This is achieved through coordination and selectivity:

  • Coordination: Ensures that protective devices operate in a predetermined sequence, with downstream devices acting first to isolate faults closest to the source.
  • Selectivity: Involves the proper selection and setting of protective devices so that only the faulty section of the circuit is disconnected, minimizing the impact on the overall system.

Advanced Protection Systems

Modern electrical systems often employ sophisticated protection schemes that integrate multiple devices and technologies. Examples include:

  • Digital Protection Relays: Utilize microprocessors to provide precise and programmable protection settings, along with advanced features like remote monitoring and diagnostics.
  • Arc Fault Circuit Interrupters (AFCIs): Detect and mitigate arc faults, which are a common cause of electrical fires.
  • Ground Fault Circuit Interrupters (GFCIs): Protect against ground faults by disconnecting the circuit when a difference between the incoming and outgoing current is detected.

Practical Tips for Overcurrent Protection

Regular Maintenance

  • Inspect Equipment: Regularly check electrical equipment and wiring for signs of wear, damage, or overheating.
  • Test Protective Devices: Periodically test fuses, circuit breakers, and relays to ensure they function correctly.

Proper Circuit Design

  • Load Calculation: Accurately calculate the electrical load and ensure circuits are designed to handle the expected current.
  • Appropriate Device Selection: Use the correct types and ratings of fuses, circuit breakers, and relays for specific applications.

Training and Awareness

  • Educate Personnel: Ensure that all personnel involved in the operation and maintenance of electrical systems are trained in overcurrent protection and safety procedures.
  • Implement Safety Protocols: Establish and enforce safety protocols to prevent overloading circuits and to handle overcurrent situations effectively.


Overcurrent protection is a fundamental aspect of electrical system design and operation. By understanding the nature of overcurrent, its causes, and the protective measures available, engineers and technicians can ensure the safety, reliability, and efficiency of electrical installations. Regular maintenance, proper circuit design, and the use of advanced protection technologies are key to mitigating the risks associated with overcurrent and safeguarding both property and lives.
