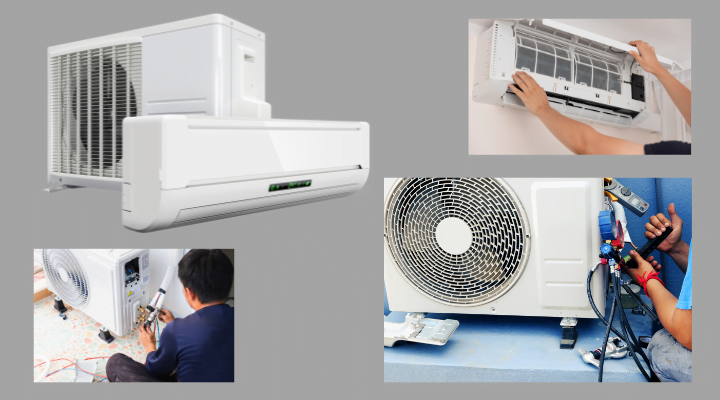

Parts of the Air Conditioning System

The air conditioning system is a crucial component of many buildings and vehicles, providing a comfortable and controlled indoor environment. It consists of several key parts, each playing a specific role in the overall functioning of the system. In this article, we will explore the main components of an air conditioning system and their functions.

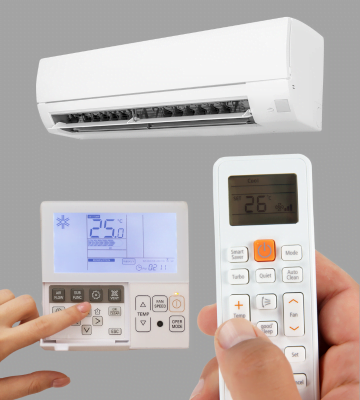

The thermostat serves as the control center for the air conditioning system. It allows users to set the desired temperature and regulates the operation of the system accordingly. Modern thermostats often come with programmable features, enabling users to schedule temperature adjustments based on their preferences.

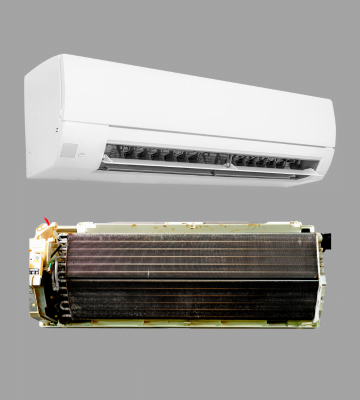

Evaporator Coil

Located inside the indoor unit, the evaporator coil is responsible for absorbing heat from the indoor air. As warm air passes over the coil, the refrigerant inside absorbs the heat, causing the air to cool down. This cooled air is then circulated back into the living or working space.

Condenser Coil

The condenser coil is situated in the outdoor unit of the air conditioning system. Its primary function is to release the heat absorbed by the evaporator coil. The refrigerant, now in a high-pressure, high-temperature state, releases the heat into the outside air, allowing the refrigerant to return to a cool, low-pressure state.

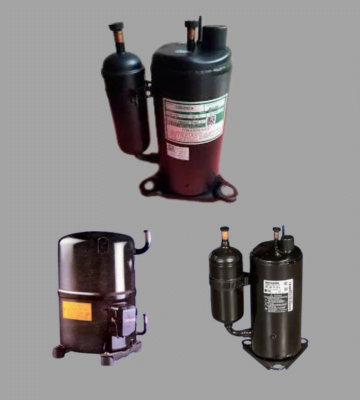

The compressor is a vital component that works in tandem with the condenser coil. It pressurizes the refrigerant, facilitating its movement through the system. By compressing the refrigerant, the compressor ensures that it can efficiently absorb and release heat as it circulates between the evaporator and condenser coils.

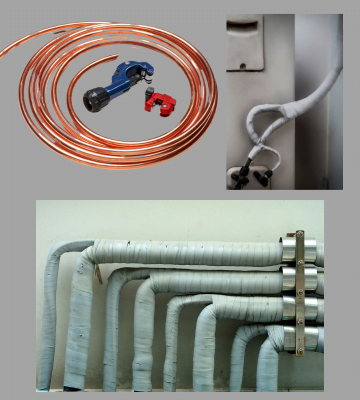

Refrigerant Lines

These lines connect the indoor and outdoor units, allowing the refrigerant to flow between the evaporator and condenser coils. Refrigerant lines are insulated to prevent energy loss and maintain the efficiency of the cooling process.

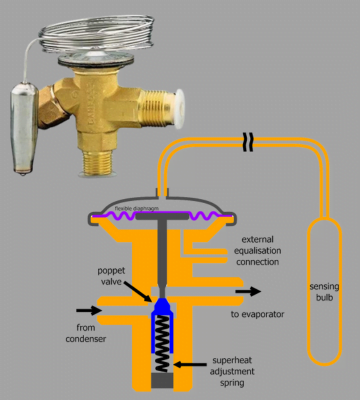

Expansion Valve

Positioned between the evaporator and condenser coils, the expansion valve regulates the flow of refrigerant. It controls the amount of refrigerant entering the evaporator coil, ensuring that the system operates at the optimal level of efficiency.

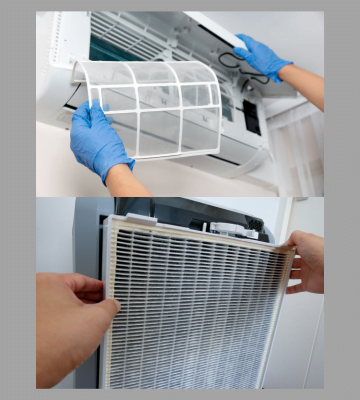

Air Filter

The air filter is located in the return air duct, and its purpose is to trap dust, dirt, and other particles from the incoming air. Regularly replacing or cleaning the air filter is essential for maintaining optimal system performance and indoor air quality.

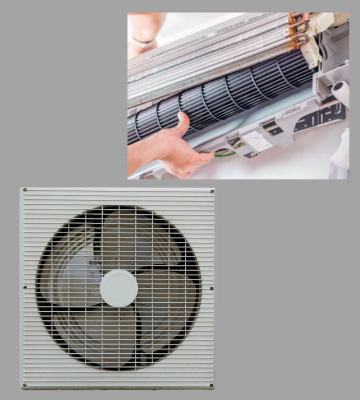

Both the indoor and outdoor units contain fans. The indoor fan circulates the cooled air throughout the living or working space, while the outdoor fan expels the heat absorbed by the refrigerant into the outside air.


In conclusion, a well-functioning air conditioning system relies on the synergy of various components working together seamlessly. From the thermostat that allows users to set their preferred temperature to the condenser and evaporator coils responsible for heat exchange, each part plays a crucial role in maintaining a comfortable indoor environment.

Regular maintenance, such as replacing or cleaning air filters, checking refrigerant levels, and ensuring the proper functioning of the compressor and fans, is imperative for the longevity and efficiency of the system. Homeowners and HVAC professionals alike should be aware of these components and their functions to troubleshoot issues effectively and optimize the overall performance of the air conditioning system.

As technology continues to advance, the air conditioning industry is witnessing innovations aimed at improving energy efficiency and sustainability. Whether it’s the development of smart thermostats or more eco-friendly refrigerants, staying informed about these advancements can empower users to make choices that align with both their comfort needs and environmental considerations.

In essence, understanding the intricacies of the various parts of an air conditioning system not only contributes to its smooth operation but also empowers users to make informed decisions about maintenance, upgrades, and environmentally conscious choices. A well-maintained and optimized air conditioning system ensures not only a cool and comfortable indoor environment but also contributes to energy efficiency and sustainability in the long run.

Frequently Asked Questions about Air Conditioning Systems

  1. How often should I replace the air filter in my air conditioning system?
    • It is recommended to check and replace the air filter every 1 to 3 months, depending on factors such as the type of filter, the level of usage, and the indoor air quality. A clean filter ensures optimal system performance and indoor air quality.
  2. Why is my air conditioning system not cooling effectively?
    • Several factors could contribute to inefficient cooling, such as a dirty or clogged air filter, low refrigerant levels, a malfunctioning compressor, or issues with the thermostat. Regular maintenance and professional inspections can help identify and address these issues.
  3. What is the ideal temperature setting for my thermostat?
    • The ideal temperature setting can vary based on personal comfort preferences. However, the U.S. Department of Energy recommends setting the thermostat to 78°F (26°C) when at home and adjusting it higher when away to conserve energy.
  4. How can I improve the energy efficiency of my air conditioning system?
    • To enhance energy efficiency, consider routine maintenance, such as cleaning or replacing air filters, sealing air ducts, installing a programmable thermostat, and ensuring proper insulation. Additionally, upgrading to a more energy-efficient system can yield long-term benefits.
  5. What is refrigerant, and why is it important for my air conditioning system?
    • Refrigerant is a substance that absorbs and releases heat to facilitate the cooling process. It undergoes a cycle of compression and expansion, moving between the evaporator and condenser coils. Proper refrigerant levels are crucial for efficient heat exchange and overall system performance.
  6. How can I troubleshoot common issues with my air conditioning system?
    • For issues like insufficient cooling, unusual noises, or frequent cycling, start by checking the air filter, inspecting the thermostat settings, and ensuring there are no obstructions around the outdoor unit. If problems persist, it’s advisable to seek professional assistance.
  7. What are the benefits of upgrading to a smart thermostat?
    • Smart thermostats offer features such as remote temperature control, programmable schedules, and energy usage insights. They can enhance convenience, optimize energy efficiency, and often contribute to cost savings over time.
  8. Is it necessary to have regular professional maintenance for my air conditioning system?
    • Yes, regular professional maintenance is essential to ensure the system operates efficiently and to catch potential issues before they escalate. Professionals can perform tasks like checking refrigerant levels, cleaning coils, and inspecting electrical components for optimal performance.
  9. Can I use my air conditioning system during the winter months?
    • Some air conditioning systems have a heat pump function that allows them to provide heating during colder months. However, for regions with extremely low temperatures, a dedicated heating system may be more effective and energy-efficient.
  10. What are some eco-friendly practices for air conditioning?
    • To promote sustainability, consider using energy-efficient systems, maintaining proper insulation, and exploring eco-friendly refrigerants. Additionally, setting the thermostat to slightly higher temperatures and using fans can reduce energy consumption while maintaining comfort.
