Protection Against Ground Faults

Ground faults are one of the most common and dangerous electrical hazards. They occur when the electrical current strays from its intended path and takes a shortcut to the ground. This can happen due to damaged insulation, water ingress, or contact with conductive surfaces. Ground faults pose serious risks, including electrical shocks, fires, and equipment damage. Proper protection against ground faults is crucial for ensuring electrical safety in residential, commercial, and industrial settings.

Understanding Ground Faults

What is a Ground Fault?

A ground fault is an unintentional electrical path between a power source and a grounded surface. When a ground fault occurs, the current flows directly to the ground, bypassing the normal circuit path. This can result in electrical shock, equipment damage, or even fire.

Common Causes of Ground Faults

  1. Damaged Insulation: Over time, the insulation on electrical wires can degrade or get damaged, exposing the conductors and increasing the risk of ground faults.
  2. Moisture and Water Ingress: Water is a good conductor of electricity. If electrical systems are exposed to moisture or water, it can create a path to the ground, leading to a ground fault.
  3. Physical Damage: Accidental damage to electrical wiring, such as during construction or renovation activities, can lead to ground faults.
  4. Faulty Appliances and Equipment: Defective electrical appliances or equipment can have compromised insulation or exposed conductors, increasing the risk of ground faults.

Importance of Ground Fault Protection

Ground fault protection is essential to ensure the safety of people, equipment, and property. Without adequate protection, ground faults can result in:

  • Electrical Shocks: Ground faults can cause severe electrical shocks to individuals who come into contact with live parts.
  • Electrical Fires: The high current flow during a ground fault can generate heat, potentially igniting nearby flammable materials and causing fires.
  • Equipment Damage: Electrical equipment can be damaged or destroyed by excessive current flow during a ground fault.
  • Service Interruptions: Ground faults can lead to power outages and disrupt operations in residential, commercial, and industrial settings.

Methods of Ground Fault Protection

1. Ground Fault Circuit Interrupters (GFCIs)

GFCIs are devices designed to protect people from electrical shock by detecting ground faults and disconnecting the power supply. They are commonly used in areas where electrical equipment is close to water, such as bathrooms, kitchens, and outdoor areas.

How GFCIs Work

GFCIs monitor the current flow in a circuit. Under normal conditions, the current flowing into a circuit through the hot wire should equal the current returning through the neutral wire. If a ground fault occurs, some of the currents will flow through an unintended path to the ground. The GFCI detects this imbalance and quickly shuts off the power to the circuit, usually within milliseconds.

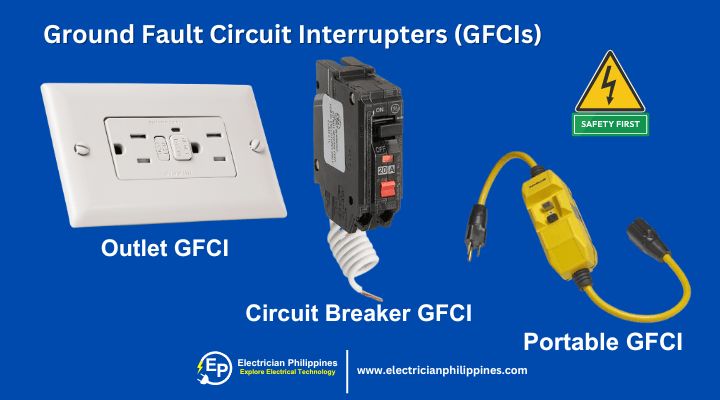

Types of GFCIs

  • Receptacle GFCIs: These are integrated into standard electrical outlets and are commonly used in residential settings.
  • Circuit Breaker GFCIs: These are installed in the main service panel and provide ground fault protection for entire circuits.
  • Portable GFCIs: These are used with extension cords and portable equipment to provide temporary ground fault protection.

2. Ground Fault Protection Devices (GFPDs)

GFPDs are similar to GFCIs but are designed for equipment protection rather than personal safety. They are typically used in industrial settings where equipment damage from ground faults can have significant consequences.

How GFPDs Work

GFPDs operate on the same principle as GFCIs by detecting ground faults and interrupting the circuit. However, they are usually set to trip at higher current levels compared to GFCIs, as their primary purpose is to protect equipment rather than individuals.

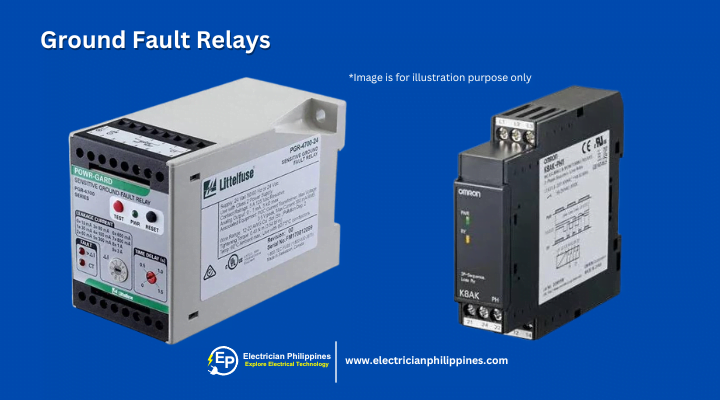

3. Ground Fault Relays

Ground fault relays are used in industrial and commercial settings to detect and respond to ground faults. These devices monitor the current in a circuit and, upon detecting a ground fault, send a signal to a circuit breaker or other protective device to disconnect the power.

Applications of Ground Fault Relays

  • Motor Control Centers: Ground fault relays protect motors and motor control equipment from ground faults.
  • Switchgear: Ground fault relays are used in switchgear to protect electrical distribution systems.
  • Power Distribution Panels: Ground fault relays help protect power distribution panels from ground faults, reducing the risk of service interruptions and equipment damage.

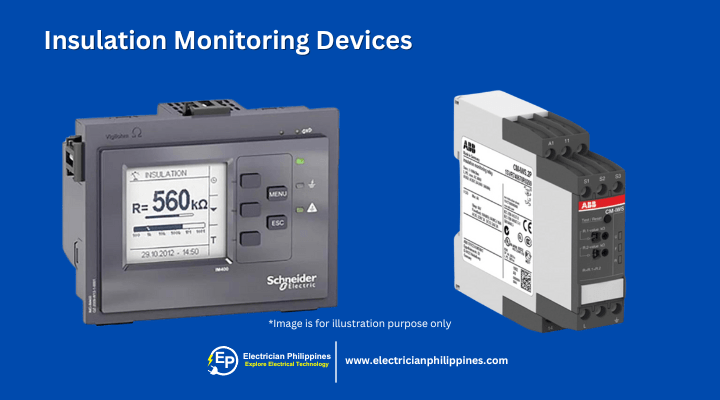

4. Insulation Monitoring Devices

Insulation monitoring devices continuously monitor the insulation resistance of an electrical system. These devices can detect deteriorating insulation and potential ground faults before they occur, allowing for preventive maintenance.

How Insulation Monitoring Devices Work

Insulation monitoring devices inject a small, non-harmful test current into the electrical system and measure the resulting resistance. If the insulation resistance drops below a predetermined threshold, the device triggers an alarm, indicating a potential ground fault.

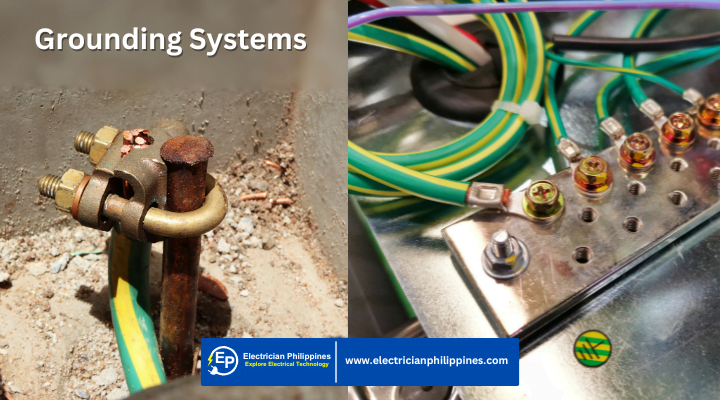

5. Grounding Systems

Proper grounding is a fundamental aspect of electrical safety. Grounding systems provide a low-resistance path to the ground, ensuring that fault currents are safely dissipated. Grounding systems include:

  • Ground Rods: Metal rods driven into the earth to provide a grounding path.
  • Ground Grids: Networks of conductors buried in the ground to enhance grounding effectiveness.
  • Grounding Conductors: Conductive paths that connect electrical systems to the ground.

Best Practices for Ground Fault Protection

Regular Inspections and Maintenance

  • Visual Inspections: Regularly inspect electrical wiring, equipment, and installations for signs of damage or wear.
  • Testing: Periodically test GFCIs, GFPDs, and ground fault relays to ensure they are functioning correctly.
  • Maintenance: Replace damaged or worn insulation, repair faulty equipment, and ensure proper grounding connections.

Proper Installation

  • Compliance with Codes and Standards: Ensure all electrical installations comply with relevant codes and standards, such as the latest Philippine Electrical Code (PEC).
  • Qualified Personnel: Use qualified electricians and registered Master Electricians to install and maintain electrical systems to ensure proper workmanship and safety.

Use of Appropriate Protective Devices

  • GFCIs in Wet Areas: Install GFCIs in bathrooms, kitchens, outdoor areas, and other locations where water is present.
  • GFPDs for Equipment: GFPDs are used to protect sensitive equipment in industrial settings.
  • Ground Fault Relays: Implement ground fault relays in commercial and industrial electrical distribution systems.

Education and Training

  • Awareness Programs: Conduct awareness programs to educate personnel about the dangers of ground faults and the importance of ground fault protection.
  • Training: Provide training on properly using, testing, and maintaining ground fault protection devices.


Ground faults are significant electrical hazards that can lead to severe consequences, including electrical shocks, fires, and equipment damage. Implementing effective ground fault protection measures is crucial for ensuring electrical safety in residential, commercial, and industrial environments. Ground fault circuit interrupters, ground fault protection devices, ground fault relays, insulation monitoring devices, and proper grounding systems are essential to a comprehensive ground fault protection strategy. Regular inspections, maintenance, proper installation, and education are key to minimizing the risks associated with ground faults and ensuring a safe electrical environment.

By understanding the causes of ground faults and implementing appropriate protective measures, we can create safer electrical systems and protect people, property, and equipment from the dangers of ground faults.
