The primary purpose of continuity testing is to verify that all parts of a circuit are correctly connected and that there are no breaks (open circuits) or unintended connections (short circuits) that could affect the circuit’s operation. This test helps to ensure that the circuit or device will function as intended when powered.
How Continuity Testing Works
Continuity testing involves measuring the resistance between two points in a circuit. Here’s how it generally works:
- Low Resistance = Continuity: If the circuit is complete (i.e., there are no breaks), the resistance between the two points will be very low, typically close to zero ohms. This indicates that the circuit is continuous, meaning the current can flow uninterrupted from one point to another.
- High Resistance = No Continuity: If there is a break in the circuit, the resistance between the two points will be very high or infinite, indicating that the circuit is not continuous. This means current cannot flow between the two points, which would prevent the circuit from functioning correctly.
Tools Used for Continuity Testing
The most common tool for continuity testing is a multimeter, which is set to its continuity mode or resistance (ohmmeter) mode. When set to continuity mode:
- Audible Signal: Many multimeters will emit a beep when they detect continuity, making it easy to identify a continuous circuit without needing to look at the meter’s display.
- Visual Display: The meter will also display the resistance value, which should be close to zero for a continuous circuit.

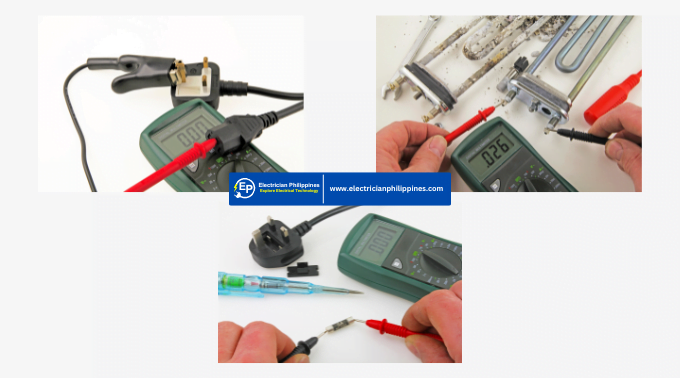

Steps to Perform Continuity Testing
- Turn Off Power:
- Before conducting a continuity test, ensure that the circuit is de-energized to avoid electric shocks or damaging the testing equipment.
- Set the Multimeter:
- Set the multimeter to continuity mode (often indicated by a soundwave symbol) or resistance mode.
- Connect Test Leads:
- Attach the multimeter’s test leads to the two points in the circuit you want to test. The black lead usually goes to the COM terminal, and the red lead connects to the terminal marked for continuity or resistance.
- Interpret the Results:
- If the circuit is continuous, the multimeter will beep, and the display will show a low resistance value.
- If there is no continuity, the multimeter will not beep, and the display may show a high resistance value or “OL” (open loop), indicating an open circuit.
Applications of Continuity Testing
- Wiring Integrity:
- Ensures that wiring in electrical installations, such as in buildings, vehicles, or machinery, is correctly connected without any breaks.
- Component Testing:
- Check that electrical components like switches, fuses, and relays are functioning properly.
- Circuit Board Testing:
- Verifies the integrity of connections on printed circuit boards (PCBs).
Importance of Continuity Testing
Continuity testing is vital for:
- Safety: Detects potential faults that could cause electrical shocks, short circuits, or fires if left uncorrected.
- Quality Assurance: Ensures that all electrical connections are correctly made, reducing the likelihood of failures after installation.
- Troubleshooting: Helps identify problems like broken wires or faulty components in a circuit, making repairs more straightforward.

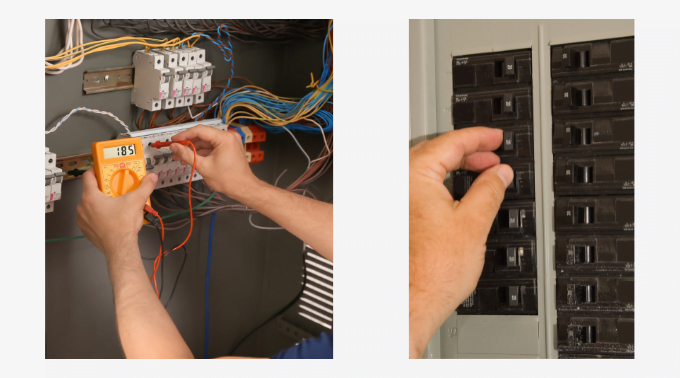

Why is Continuity Testing essential before energizing new electrical installation
Continuity testing is a critical step before energizing any new electrical installation for several reasons. It ensures the safety, reliability, and proper functioning of the electrical system. Below are the key reasons why continuity testing is so important before energizing a new electrical installation:
1. Ensures Safety
- Prevents Electrical Hazards: Continuity testing helps identify any open circuits, short circuits, or incorrect wiring connections before the system is energized. Detecting these issues early prevents potential electrical hazards such as electric shocks, short circuits, or even fires.
- Avoids Equipment Damage: Energizing a faulty circuit can cause significant damage to electrical equipment and components. Continuity testing ensures that all wiring and connections are correctly installed, preventing costly damages to equipment.
2. Verifies Integrity of the Installation
- Confirms Proper Connections: Continuity testing verifies that all connections are properly made, ensuring that there are no loose wires, poor connections, or breaks in the circuit. This is crucial for the reliable operation of the electrical system.
- Detects Open Circuits: An open circuit, where a wire or connection is broken, would prevent current from flowing properly. Continuity testing ensures that all circuits are complete and capable of carrying the intended electrical load.
3. Prevents Short Circuits
- Identifies Unintentional Short Circuits: A short circuit occurs when two conductors that should not be electrically connected come into contact. This can cause excessive current flow, leading to circuit breakers tripping, fuses blowing, or even fires. Continuity testing detects any unintended connections, allowing for corrective actions before the system is powered.
- Ensures Insulation Integrity: During continuity testing, any continuity between conductors that should be isolated from each other, such as a live wire and ground, indicates a problem with the insulation. Identifying this issue before energizing the system is essential to prevent potential short circuits.
4. Ensures Compliance with Electrical Standards
- Meets Code Requirements: In many jurisdictions, including the Philippines, continuity testing is a required step in complying with local electrical codes, such as the Philippine Electrical Code (PEC). This ensures that the installation meets all safety and performance standards before it is energized.
- Documentation for Inspection: Continuity testing results are often required as part of the documentation provided to inspectors or for project records. This documentation serves as proof that the installation was thoroughly tested and found to be safe and compliant.
5. Avoids Future Operational Issues
- Prevents Intermittent Problems: Without continuity testing, undetected loose connections or faulty wiring can cause intermittent operational issues, such as flickering lights, equipment malfunctions, or unexpected power losses. These issues can be difficult to diagnose once the system is energized, making pre-energization testing critical.
- Reduces Maintenance Costs: By identifying and fixing any issues before energization, continuity testing helps reduce future maintenance costs and downtime. A well-tested installation is less likely to experience failures or require repairs soon after commissioning.
6. Increases Confidence in the Installation
- Ensures Reliable Operation: Continuity testing provides confidence that the electrical system will operate reliably once it is powered up. This is particularly important in critical applications, such as in hospitals, data centers, or industrial facilities, where system reliability is paramount.
- Facilitates Troubleshooting: If any issues arise after energization, having a baseline from continuity testing makes troubleshooting easier. Knowing that the system passed continuity testing allows technicians to focus on other potential causes of any problems.
