Understanding the maximum rated ampacity of electrical devices is crucial for ensuring safety and optimal performance in electrical systems. Ampacity refers to the maximum current carrying capacity of a conductor or device without exceeding its temperature rating. Exceeding this rating can lead to overheating, insulation damage, and potentially hazardous conditions such as fires or equipment failure.
Here’s a comprehensive guide to understanding and determining the maximum rated ampacity in electrical devices:
What is Ampacity?
Ampacity is the maximum continuous current in amperes that a conductor can carry without exceeding its temperature rating. It is influenced by factors such as conductor material, size, insulation type, installation method, ambient temperature, and environmental conditions.
Importance of Maximum Rated Ampacity:
Maximum-rated ampacity is a critical specification in electrical devices, playing a pivotal role in ensuring safe and efficient operation. Understanding its significance is essential for both professionals and consumers in the electrical field. In this article, we delve into the importance of maximum-rated ampacity in electrical devices, its implications, and how it influences device selection and usage.
What is Maximum Rated Ampacity?
Maximum-rated ampacity refers to the maximum current-carrying capacity of an electrical device or component under specified conditions. It is typically expressed in amperes (A) and represents the maximum amount of electrical current that the device can handle without exceeding its designed operating parameters or risking damage.
Importance of Maximum Rated Ampacity:
1. Safety:
One of the primary reasons for specifying maximum rated ampacity is safety. Exceeding the rated ampacity of an electrical device can lead to overheating, insulation breakdown, and potential fire hazards. By adhering to the maximum rated ampacity, the risk of electrical accidents and safety hazards is significantly reduced, ensuring the well-being of individuals and property.
2. Device Performance:
Operating electrical devices within their rated ampacity ensures optimal performance and longevity. Overloading a device beyond its maximum rated ampacity can cause excessive stress on its components, leading to premature failure, reduced efficiency, and costly repairs or replacements. By respecting the rated ampacity, users can maintain consistent performance and reliability of their electrical equipment.
3. Code Compliance:
Electrical codes and standards mandate adherence to maximum rated ampacity to ensure compliance with safety regulations. Regulatory bodies such as the National Electrical Code (NEC) provide guidelines for determining appropriate ampacity ratings for various electrical components and installations. Compliance with these standards is essential for obtaining permits, passing inspections, and ensuring legal compliance in construction and electrical projects.
4. Equipment Selection:
Maximum-rated ampacity serves as a crucial factor in selecting appropriate electrical equipment for specific applications. Whether choosing wires, cables, circuit breakers, or other components, matching the rated ampacity to the intended load helps ensure compatibility and safe operation. Failure to consider ampacity ratings during equipment selection can result in undersized or oversized components, leading to inefficiency, poor performance, and safety risks.
5. Voltage Drop:
Exceeding the maximum rated ampacity can also result in a voltage drop, where the voltage supplied to electrical devices decreases due to the resistance of conductors carrying excessive current. This can adversely affect the performance of connected equipment, particularly sensitive electronics, motors, and appliances. By staying within the rated ampacity, users can minimize voltage drop and maintain a consistent electrical supply to their devices.
Determining Maximum Rated Ampacity:
- Device Ratings: Electrical devices such as wires, cables, circuit breakers, fuses, switches, and appliances are typically labeled with their maximum rated ampacity.
- Consulting Standards: Electrical codes and standards provide guidelines for determining ampacity based on factors like conductor size, insulation type, installation method, and ambient temperature.
- Calculations: Ampacity can be calculated using standardized formulas or tables provided by organizations like the NEC or the International Electrotechnical Commission (IEC). These calculations consider factors such as conductor size, insulation type, number of conductors, and ambient temperature.
Factors Affecting Ampacity:
- Conductor Size: Larger conductors have higher ampacity ratings due to lower resistance and improved heat dissipation.
- Insulation Type: Different insulation materials have varying temperature ratings, affecting the maximum allowable current.
- Ambient Temperature: Higher ambient temperatures reduce a conductor’s ability to dissipate heat, lowering its ampacity.
- Installation Method: Factors such as bundling, conduit fill, and proximity to heat sources can affect ampacity.
Tips for Ensuring Safe Ampacity:
- Proper Sizing: Use conductors and devices with ampacity ratings suitable for the intended application and load requirements.
- Avoid Overloading: Distribute loads evenly across circuits and avoid exceeding ampacity limits.
- Temperature Monitoring: Monitor conductor temperatures in critical applications using temperature sensors or thermal imaging.
- Regular Maintenance: Inspect and maintain electrical systems regularly to identify and address any issues that may affect ampacity.
Why do you need to know the Maximum Rated Ampacity of your Electrical Devices?
Knowing the maximum rated ampacity of electrical devices is crucial for several reasons:
- Safety: Exceeding the maximum rated ampacity can lead to overheating of conductors, insulation damage, and potentially hazardous conditions such as fires or equipment failure. By staying within the specified limits, you reduce the risk of accidents and ensure the safety of occupants and property.
- Preventing Damage: Operating electrical devices beyond their maximum rated ampacity can cause insulation degradation, melting of components, and damage to equipment. Knowing and adhering to ampacity ratings helps prevent costly repairs or replacements due to equipment failure.
- Optimal Performance: Electrical devices perform best when operated within their specified ampacity limits. Operating equipment at higher currents than intended can result in decreased efficiency, voltage drops, and poor performance. By staying within the rated limits, you ensure optimal functionality and longevity of electrical systems.
- Compliance with Regulations: Electrical codes and standards, such as the National Electrical Code (NEC) in the United States, and the Philippine Electrical Code (PEC) in the Philippines, mandate adherence to maximum-rated ampacity limits to ensure safety and compliance. Failure to comply with these regulations can result in fines, penalties, or legal liabilities.
- Avoiding Overloads: Knowing the maximum rated ampacity helps prevent overloading of electrical circuits. Overloaded circuits can trip circuit breakers, blow fuses, or cause overheating, leading to disruptions in power supply and potential damage to connected devices.
- Proper Sizing: Understanding ampacity ratings allows for proper sizing of conductors and electrical components based on the anticipated loads and operating conditions. Undersized conductors can lead to excessive voltage drops, whereas oversized conductors can be costly and inefficient.
Properly sizing the wire and circuit breaker after knowing the rated ampacity of your electrical devices is essential to ensure the safe and efficient operation of the electrical system. Here’s how to do it:
1. Sizing the Wire:
- Refer to Ampacity Tables: Consult ampacity tables provided by standards such as the National Electrical Code (NEC) or Philippine Electrical Code (PEC) to determine the appropriate wire size based on the rated ampacity of the electrical device and the maximum allowable current.
- Consider Factors: Take into account factors such as the type of insulation, the number of current-carrying conductors in the same conduit or cable, and the ambient temperature to determine the correct wire size.
- Voltage Drop: Consider voltage drop requirements, especially for long conductor runs or sensitive equipment. Select a wire size that keeps voltage drop within acceptable limits for the application.
- Oversizing: In some cases, it may be advisable to select a wire size larger than the minimum required to account for future expansions, voltage drop concerns, or to accommodate higher current demands.
2. Sizing the Circuit Breaker:
- Match the Ampacity: Select a circuit breaker with an ampacity rating equal to or greater than the rated ampacity of the wire and the electrical device it is protecting.
- Consider PEC Guidelines: Adhere to the guidelines provided by the PEC or relevant electrical code for sizing circuit breakers based on wire ampacity and device ratings.
- Account for Inrush Current: Consider the inrush current of the electrical device, especially for motors or equipment with high starting currents. Choose a circuit breaker with a suitable instantaneous trip setting to accommodate inrush current without tripping unnecessarily.
- Coordination: Ensure coordination between upstream and downstream circuit breakers to provide selective tripping and minimize the impact of faults or overloads on the electrical system.
- Overcurrent Protection: Select a circuit breaker with appropriate overcurrent protection characteristics, such as thermal and magnetic trip elements, to provide effective protection against overloads and short circuits.
- Type of Circuit Breaker: Choose the type of circuit breaker (e.g., thermal-magnetic, electronic, or ground fault circuit interrupter) based on the specific requirements of the application and the level of protection needed.
What will happen if you exceed the Maximum Rated Ampacity of your Electrical Devices?
Exceeding the maximum rated ampacity of electrical devices can lead to several potentially hazardous consequences:
- Overheating: The most immediate and dangerous consequence of exceeding ampacity limits is overheating. When the current flowing through a conductor exceeds its rated ampacity, the conductor heats up beyond safe levels. This can cause insulation breakdown, melting of conductor insulation, and even ignition of nearby combustible materials.
- Insulation Damage: Overheating due to excessive current can damage the insulation surrounding electrical conductors. Insulation breakdown increases the risk of short circuits, electrical faults, and electrical shocks. Damaged insulation can also compromise the integrity of the electrical system and pose safety hazards.
- Equipment Failure: Exceeding the maximum rated ampacity can lead to premature failure of electrical devices and components. High temperatures can degrade the performance and reliability of switches, circuit breakers, transformers, motors, and other equipment. Continuous operation beyond rated limits can cause irreversible damage and necessitate costly repairs or replacements.
- Fire Hazard: Overloaded conductors and electrical devices pose a significant fire hazard. Excessive current flow generates heat, which can ignite nearby combustible materials or cause insulation to smolder. Electrical fires are a serious risk to life and property and can spread rapidly if not promptly extinguished.
- Safety Risks: Exceeding ampacity limits compromises the safety of occupants and maintenance personnel. Overloaded circuits increase the risk of electrical shocks, burns, and other injuries. In commercial and industrial settings, electrical accidents can result in serious harm or fatalities.
- Non-Compliance: Exceeding the maximum rated ampacity violates electrical codes and standards, such as the Philippine Electrical Code (PEC) in the Philippines. Non-compliance with regulations can result in fines, penalties, legal liabilities, and insurance issues. Following industry best practices and adhering to rated ampacity limits is essential for compliance and safety.
Where to find the Maximum Rated Ampacity of the Electrical Devices?
The maximum rated ampacity of electrical devices can typically be found in several locations:
- Manufacturer’s Documentation: The manufacturer’s specifications or product datasheets often provide detailed information about the maximum rated ampacity of electrical devices. These documents may be available on the manufacturer’s website or included with the product packaging.

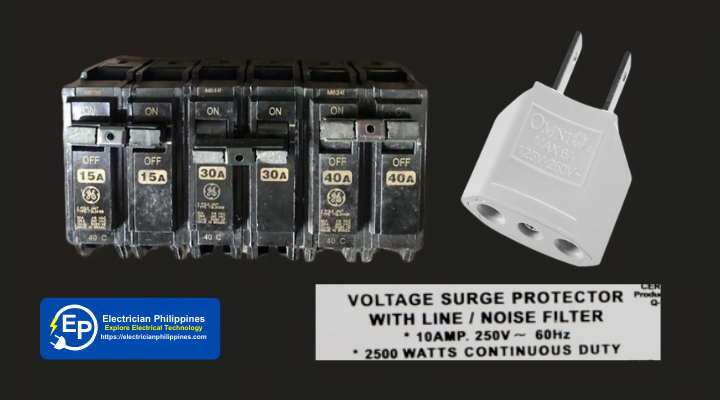

- Product Labeling: Many electrical devices, such as wires, cables, circuit breakers, switches, and appliances, are labeled with their maximum rated ampacity. Look for markings, labels, or imprints directly on the device itself. This information is usually printed in a visible location for easy reference.
- Nameplate or Rating Plate: Electrical equipment, especially larger or more complex devices like motors or transformers, often feature a nameplate or rating plate affixed to the housing. This plate contains important information about the device, including its maximum rated ampacity, voltage, current, power rating, and other specifications.
- Installation Manuals: Installation manuals or instruction guides provided with electrical devices may include information about their maximum rated ampacity. These documents often contain detailed instructions for proper installation, operation, and maintenance, along with technical specifications and ratings.
- Online Resources: Many manufacturers provide online resources, databases, or catalogs where customers can access product specifications, including maximum rated ampacity. These resources may be available on the manufacturer’s website or through authorized distributors or retailers.
- Electrical Codes and Standards: Electrical codes and standards, such as the National Electrical Code (NEC) in the United States, the Philippine Electrical Code (PEC) in the Philippines, or the International Electrotechnical Commission (IEC) standards, specify ampacity requirements for various types of electrical devices. Consulting relevant codes and standards can provide guidance on maximum-rated ampacity requirements for specific applications.
By checking these sources, you can easily determine the maximum rated ampacity of electrical devices and ensure proper sizing and safe operation within electrical systems.
