The Difference Between Lineside and Loadside Wires

In electrical engineering, particularly in the context of power distribution and circuits, the terms lineside and loadside refer to specific sections of an electrical circuit, primarily concerning the arrangement of electrical components. Understanding these distinctions is crucial for the safe and effective design, installation, and maintenance of electrical systems. Below is a detailed explanation of both terms and their differences.

Lineside Wires:

  • Lineside wires refer to the electrical conductors that are connected to the power source, such as a utility grid, transformer, or generator. These wires carry the electrical supply before it reaches the load.
  • Location: Lineside wires are the conductors that connect to the power source, typically before a device like a meter, breaker, or other electrical equipment. They bring the electrical power into the equipment.

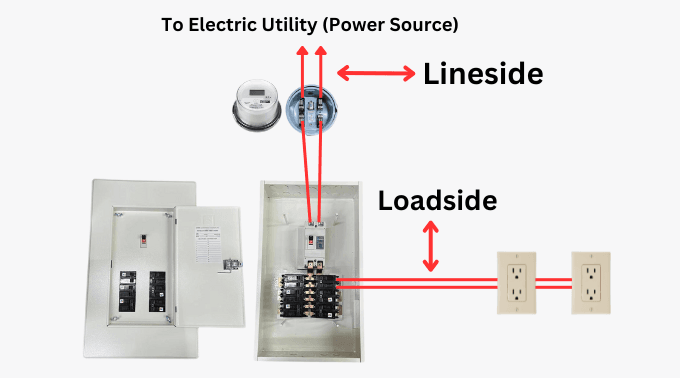

  • Usage: In an electric meter, the lineside wires are those that bring the power from the utility to the meter itself.
  • Characteristics:
    • High Voltage: Lineside wires typically operate at a higher voltage compared to loadside wires.
    • Source Connection: They connect to the source of power, meaning they are upstream in the electrical system.
    • Protection Requirements: Because they are connected directly to the power supply, lineside wires must be protected with appropriate fuses, breakers, and insulation to prevent electrical hazards.

Loadside Wires:

  • Loadside wires are the conductors that connect to the load or the devices consuming electrical power, such as appliances, motors, or lighting fixtures. They carry the electrical current from the lineside to the load.
  • Location: Loadside wires are the conductors that connect after the electrical device like a circuit breaker, distributing power from the equipment to the loads or downstream systems. They are located after a meter, breaker, or disconnect.
  • Usage: In an electric meter, the loadside wires are those that send the measured electricity into the building’s distribution panel.
  • Characteristics:
    • Lower Voltage: Loadside wires generally operate at a lower voltage than lineside wires, especially in the context of residential and commercial applications.
    • Load Connection: They connect directly to the electrical devices or circuits that use the electricity supplied by the lineside.
    • Grounding: Loadside circuits often have more stringent grounding requirements to ensure safety and reduce the risk of electric shock.

Key Differences

AspectLineside WiresLoadside Wires
LocationConnected to the power source (upstream)Connected to the electrical load (downstream)
Voltage LevelsUsually higher voltageUsually lower voltage
FunctionDelivers power from the source to the circuitDistributes power to devices and loads
ProtectionRequires robust protection (breakers, fuses)May have less stringent protection needs
Safety RisksHigher risk due to exposure to high-voltageRisk primarily related to overload and faults
Grounding RequirementsGenerally grounded for safetyUsually requires grounding for safety

Practical Implications

Understanding the distinction between lineside and loadside wires is vital for various applications in electrical engineering:

  • Design Considerations: When designing electrical systems, engineers must consider the voltage levels, potential hazards, and necessary protective devices for both lineside and loadside wiring.
  • Installation Practices: Electricians must follow specific codes and regulations that dictate the correct installation methods for lineside and loadside circuits to ensure safety and functionality.
  • Troubleshooting: When diagnosing electrical issues, recognizing whether a problem lies on the lineside or loadside can significantly affect the troubleshooting process and the safety measures needed.

Conclusion

The difference between lineside and loadside wires is fundamental in electrical engineering. It not only influences design and installation practices but also plays a crucial role in ensuring safety and reliability in electrical systems. Proper understanding and handling of these wires are essential for engineers, electricians, and technicians working within the electrical field.
