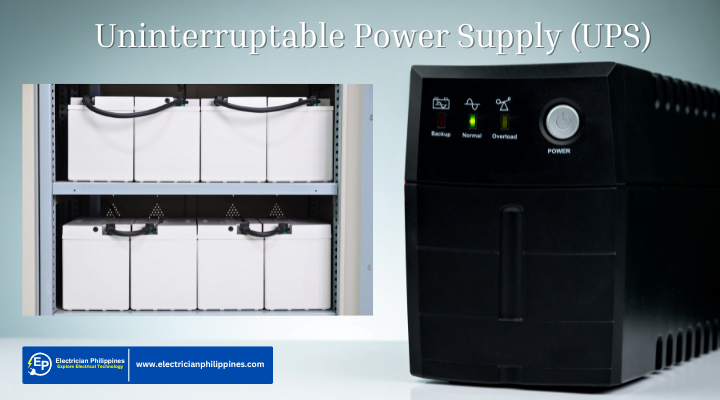

Uninterruptible Power Supply (UPS): Emergency Backup Power

What is a Uninterruptable Power Supply (UPS)?

A Uninterruptible Power Supply (UPS) is an electrical device that provides emergency power to a load when the input power source, typically the mains power, fails. It differs from an auxiliary or emergency power system or standby generator in that it provides near-instantaneous protection from input power interruptions by supplying energy stored in batteries, supercapacitors, or flywheels.

Components of a UPS

  1. Rectifier/Charger: Converts incoming AC power to DC power to charge the battery.
  2. Battery: Stores energy to be used during a power outage.
  3. Inverter: Converts DC power from the battery back into AC power to supply the load.
  4. Bypass Switch: Allows for the UPS to be bypassed for maintenance without interrupting the power supply to the load.

Types of UPS Systems

  1. Offline/Standby UPS:
    • Provides basic protection by switching to battery power when the mains supply fails.
    • Suitable for small, non-critical applications.
  2. Line-Interactive UPS:
    • Regulates voltage fluctuations and provides battery backup.
    • Suitable for small to medium-sized businesses with moderate power protection needs.
  3. Online/Double-Conversion UPS:
    • Continuously converts incoming AC power to DC and then back to AC, providing the highest level of protection.
    • Suitable for critical applications requiring seamless power.

Functions of a UPS

  1. Power Continuity:
    • Ensures that connected devices continue to operate without interruption during power outages.
  2. Voltage Regulation:
    • Protects against voltage sags and surges, which can damage sensitive equipment.
  3. Frequency Regulation:
    • Maintains a constant frequency, ensuring stable power supply.
  4. Power Conditioning:
    • Filters out noise and harmonics from the power supply.

Advantages of a UPS

  1. Protection Against Power Interruptions:
    • Provides immediate backup power, preventing data loss and equipment damage.
  2. Improved Power Quality:
    • Conditions the power supply, reducing the risk of damage to sensitive equipment.
  3. Operational Continuity:
    • Ensures that critical operations continue without interruption.
  4. Enhanced Security:
    • Maintains the operation of security systems during power outages.

Considerations When Choosing a UPS

  1. Power Capacity:
    • Ensure the UPS can handle the total power load of connected devices.
  2. Runtime:
    • Determine how long the UPS needs to supply power during an outage.
  3. Scalability:
    • Consider future expansion needs.
  4. Management Features:
    • Look for features like remote monitoring and management capabilities.

Common Applications of Uninterruptible Power Supplies (UPS)

1. Data Centers and IT Infrastructure

Data centers are the backbone of modern information technology, housing critical servers, networking equipment, and storage devices that manage and store vast amounts of data. The uninterrupted operation of these facilities is paramount to maintaining data integrity and ensuring operational continuity. This makes the role of Uninterruptible Power Supplies (UPS) crucial in these environments.

A UPS provides immediate backup power in the event of a power interruption. This instantaneous response is vital for data centers, where even a brief power outage can lead to data loss, corruption, and significant downtime. By bridging the gap between the initial power loss and the activation of longer-term backup systems, a UPS ensures that critical systems remain operational, and any necessary shutdowns can be executed safely and orderly.

Moreover, UPS systems help in maintaining the stability of power supplied to the equipment. Voltage fluctuations and power surges can cause irreparable damage to sensitive IT infrastructure. By providing a stable and clean power output, UPS systems protect against these disruptions, thereby extending the lifespan of the hardware and reducing the risk of data errors.

In addition to immediate power backup, UPS systems also allow for the seamless transition to generators or other backup power sources. This is particularly important in larger data centers where a coordinated power management strategy is essential to prevent any operational hiccups. The ability to maintain continuous power without interruption ensures that data centers can uphold their service level agreements (SLAs) and avoid costly downtimes that could affect their clients and end-users.

In summary, the integration of UPS systems in data centers and IT infrastructure is not merely a precautionary measure but a fundamental component of their operational strategy. By ensuring continuous power supply, protecting against power anomalies, and facilitating safe transitions to backup power sources, UPS systems play a crucial role in maintaining the integrity and availability of critical data and services.

2.Medical Facilities

In medical facilities such as hospitals and clinics, the reliability of electrical power is paramount. Uninterruptible Power Supplies (UPS) systems play a vital role in safeguarding critical medical equipment, including ventilators, monitors, and diagnostic machines. These devices are essential for patient care, and any power interruption can have dire consequences, potentially risking lives.

UPS systems ensure continuous power supply, thereby maintaining the functionality of life-supporting devices. For instance, ventilators are crucial for patients who need mechanical assistance to breathe. A sudden power outage without a UPS backup could lead to respiratory failure. Similarly, monitors that track vital signs like heart rate and blood pressure are indispensable for patient monitoring. Any interruption in their operation can delay critical medical responses.

Diagnostic machines, such as MRI and CT scanners, also depend on a stable power supply. Any interruption during diagnostic procedures can result in incomplete scans, leading to misdiagnosis or the need for repeat procedures, thus exposing patients to additional stress and risk. UPS systems prevent these scenarios by providing immediate power backup, allowing for the safe and uninterrupted operation of these machines.

Moreover, the importance of UPS systems extends to electronic health records (EHR) systems and other IT infrastructure in healthcare settings. These systems store and manage patient data, and their continuous operation is crucial for maintaining accurate and accessible medical records. A UPS ensures that data integrity is preserved even during power outages, which is vital for ongoing patient care and administrative functions.

In summary, the implementation of UPS systems in medical facilities is essential for the safety and reliability of critical medical equipment. By ensuring continuous power supply, UPS systems help protect patient health and well-being, enabling healthcare providers to deliver consistent and effective care even during power interruptions.

3. Financial Institutions

In the realm of financial institutions, the importance of uninterruptible power supplies (UPS) cannot be overstated. Banks, stock exchanges, and other financial entities rely heavily on continuous power to protect their transaction processing systems, automated teller machines (ATMs), and critical data centers. The uninterrupted power provided by UPS systems is crucial for maintaining financial operations and ensuring security.

For banks and other financial institutions, even a brief power outage can lead to significant disruptions. Transaction processing systems are the backbone of these organizations, handling millions of transactions daily. A power interruption can result in failed transactions, leading to financial losses and operational chaos. UPS systems ensure that these critical systems remain operational, thereby preventing such financial mishaps and maintaining the integrity of transactions.

ATMs are another essential component of modern banking. Customers depend on ATMs for convenient access to their funds. A power outage that affects ATMs can lead to inconvenience for customers and a potential loss of trust in the bank’s reliability. By employing UPS systems, banks can ensure that their ATMs remain functional even during power interruptions, thereby maintaining customer trust and satisfaction.

Critical data centers in financial institutions house vast amounts of sensitive information. Power outages can not only disrupt operations but also pose security risks. Financial institutions must safeguard against data breaches and ensure that their data remains secure and accessible at all times. UPS systems provide a reliable power source that helps protect these vital data centers, ensuring that security protocols remain intact and that the institution’s valuable data is safe.

In essence, UPS systems play a vital role in the financial sector. They help prevent financial losses, ensure the integrity of transactions, and maintain customer trust during power outages. As financial institutions continue to embrace technology and digital transformation, the reliance on UPS systems will only grow, further highlighting their importance in this critical industry.

4. Industrial and Manufacturing Processes

In the realm of industrial and manufacturing processes, the importance of an uninterruptible power supply (UPS) cannot be overstated. Automated manufacturing systems, control mechanisms, and safety protocols are highly dependent on a stable and reliable power source. Any disruption in the power supply can lead to significant production stoppages, potential damage to costly equipment, and even compromise worker safety.

UPS systems serve as a critical safeguard in industrial settings by providing a seamless power transition during outages or fluctuations. This continuity is essential for maintaining the precision and efficiency of automated processes. For instance, in assembly lines where robotic arms perform intricate tasks, a sudden power loss could result in misalignment or damage to components, leading to costly downtime and repair expenses. A UPS effectively mitigates such risks by ensuring that these complex processes continue to operate smoothly.

Moreover, industrial control systems that regulate machinery and production lines are vulnerable to power disturbances. These systems require a consistent power supply to maintain optimal performance and avoid malfunctions. A UPS ensures that control systems remain operational, preserving the integrity of the manufacturing process and preventing any unplanned interruptions that could affect productivity.

Worker safety is another critical aspect influenced by power stability in industrial environments. Safety mechanisms, such as emergency stop systems and fire suppression controls, rely on uninterrupted power to function correctly. During a power outage, a UPS steps in to keep these vital safety features active, thereby protecting workers from potential hazards and ensuring a safe working environment.

In conclusion, UPS systems play an indispensable role in industrial and manufacturing processes by guaranteeing continuous power supply. They support the seamless operation of automated systems, protect sensitive control mechanisms, and uphold safety protocols, ultimately ensuring efficient production and safeguarding both equipment and personnel.
