🔍 What is Earthing (Grounding)?
Earthing (or grounding) is the process of connecting an electrical system to the earth to ensure safety by dissipating fault currents. A properly designed earthing system helps:
- Prevent electric shocks by maintaining safe touch voltages.
- Protect electrical equipment from power surges and lightning strikes.
- Ensure stable voltage levels in electrical systems.
One of the most important components in an earthing system is the ground rod, which is often made of copper or copper-clad steel due to its superior properties.

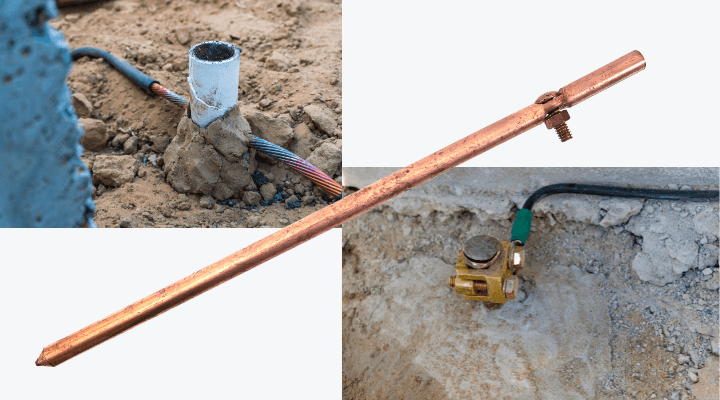

Why Copper Ground Rods Are Commonly Used in Electrical Earthing Installations?
Copper ground rods play a critical role in earthing (or grounding) systems, which are essential for electrical safety in residential, commercial, and industrial installations. The purpose of an earthing system is to provide a low-resistance path to the ground, ensuring that in the event of electrical faults (like short circuits, lightning strikes, or insulation failures), dangerous voltages are safely dissipated into the earth, protecting people and equipment.
One of the most commonly used materials for ground rods is copper (or copper-clad steel), and there are strong reasons why copper is favored over other materials like steel or aluminum.
🔍 Why Copper is Used for Ground Rods
Here are the main reasons copper ground rods are widely used in earthing installations:
1. High Electrical Conductivity
Copper is among the top materials for electrical conductivity, second only to silver. This means:
- Copper can efficiently carry fault currents safely into the earth.
- Less resistance in the grounding system, ensuring quick dissipation of electrical surges.
Keyword Tip: “high conductivity ground rod material”
2. Corrosion Resistance
Ground rods are buried underground, where they are exposed to moisture, varying pH levels, and other corrosive elements. Copper has excellent natural corrosion resistance, which ensures:
- Long service life (typically decades without significant degradation).
- Reliable and consistent grounding performance over time.
Example: Galvanized steel rods may corrode faster in acidic soils, while copper remains stable.
3. Mechanical Strength and Durability
Copper, particularly when used as copper-clad steel rods, provides both:
- The superior conductivity of copper.
- The mechanical strength of steel to drive the rod deep into the ground without bending or breaking.
This makes them ideal for installations where deep grounding electrodes are required.
4. Compatibility with Electrical Components
Copper is widely used in electrical wiring, connectors, busbars, and terminals. Using copper ground rods ensures:
- Uniformity of materials.
- Less risk of galvanic corrosion between dissimilar metals.
5. Standards Compliance
International and national electrical codes often specify copper or copper-clad ground rods for compliance.
For example:
- Philippine Electrical Code (PEC) references the use of copper grounding electrodes in various installations.
- National Electrical Code (NEC) in the U.S. specifies acceptable materials for grounding, and copper is prominently listed.
Watch the video to learn more:
Ground Rod Explained
🔧 Practical Tips for Using Copper Ground Rods:
- Rod Length: Typically 2.4 meters (8 feet) or 3 meters (10 feet).
- Rod Diameter: Common sizes are 16mm (5/8 inch) or 19mm (3/4 inch).
- Depth of Installation: Deeper installation improves contact with moisture-rich soil, lowering resistance.
- Connections: Use copper-compatible clamps and connectors to prevent dissimilar metal corrosion.
- Testing: Perform earth resistance testing (using methods like the fall-of-potential test) to ensure the ground system is within acceptable limits (usually less than 5 ohms, but check local code requirements).
📏 Installation Guide: How to Properly Install Copper Ground Rods
📌 Step 1: Choose the Right Ground Rod
🔹 Standard rod length: 2.4m (8ft) or 3m (10ft)
🔹 Diameter: 16mm (5/8 inch) or 19mm (3/4 inch)
🔹 Material: Copper-bonded steel or solid copper
📌 Step 2: Select the Installation Location
✔ Moist soil provides better conductivity.
✔ Avoid installing near dry, rocky, or sandy areas.
✔ Keep at least 1.8 meters (6 feet) away from the building foundation.
📌 Step 3: Drive the Rod into the Ground
🔨 Use a hammer drill or ground rod driver to drive the rod vertically into the earth.
📏 Ensure at least 2.4 meters (8 feet) is buried.
💡 If the rod cannot be driven fully:
- Install at a 45-degree angle
- Use multiple rods connected in parallel
📌 Step 4: Connect to the Grounding System
✔ Use copper grounding clamps to connect the rod to the main grounding conductor.
✔ Bond all grounding electrodes together (if multiple rods are used).
📌 Step 5: Test the Ground Resistance
Use an earth resistance tester to measure resistance.
✅ Ideal value: ≤ 5 ohms (as recommended by IEEE & NEC).
📌 If resistance is too high, install additional rods spaced at least 1.8 meters (6 feet) apart and connect them with a conductor.
⚠️ Common Questions About Copper Ground Rods:
✔️ Is solid copper better than copper-clad?
Solid copper rods provide excellent corrosion resistance but are more expensive. Copper-clad steel rods (with a thin copper coating over a steel core) are often used as a cost-effective and strong alternative.
✔️ How long do copper ground rods last?
Copper ground rods can last 30–50 years or more, depending on soil conditions. In highly corrosive soils, lifespan may be reduced, but copper still outperforms most alternatives.
✔️ Can I use other materials?
Yes, alternatives like galvanized steel and stainless steel exist, but they are less durable and conductive, and their use depends on the local electrical code and environmental conditions.
✔️ What if my soil has high resistance?
Solution:
- Use multiple ground rods spaced 1.8 meters apart.
- Improve soil conductivity using grounding enhancers (e.g., bentonite, salt, or conductive concrete).
✔️ Can I use galvanized steel instead of copper?
Yes, but…
❌ Galvanized rods corrode faster, reducing lifespan.
✅ Copper provides a more stable and maintenance-free solution.
✔️ How do I ensure a low-resistance ground?
✔ Install in a moist location (near water lines or deeper in the soil).
✔ Increase rod length for better grounding efficiency.
✔ Use proper connectors to avoid loose or corroded joints.
📌 Conclusion
Copper ground rods are essential in creating a safe, reliable, and long-lasting earthing system. Their superior conductivity, corrosion resistance, and durability make them the preferred choice in electrical installations worldwide.
When designing or maintaining an earthing system, selecting the right materials like copper ground rods ensures compliance with standards and, most importantly, the safety of people and equipment.
📚 References:
- Philippine Electrical Code (PEC), Latest Edition.
- IEEE Std 80-2013 – Guide for Safety in AC Substation Grounding.
- NFPA 70 – National Electrical Code (NEC).
- “Grounding and Bonding,” Mike Holt Enterprises.
- IEC 60364-5-54: “Electrical Installations of Buildings – Part 5-54: Earthing Arrangements and Protective Conductors.”
