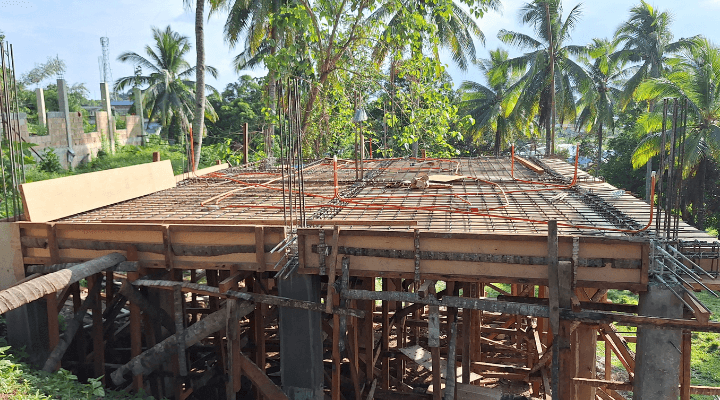

Electrical installation is a critical component of home construction that should be planned and executed during the building process. Many homeowners and contractors make the mistake of postponing electrical work until after construction, leading to costly modifications, delays, and potential safety hazards. Here’s why electrical installation should be done during house construction:
1. Proper Planning and Integration
When electrical work is incorporated into the construction process, it allows for seamless integration with other systems, such as plumbing, HVAC, and structural elements. This ensures that electrical conduits, wiring, and outlets are strategically placed without interfering with the structural integrity of the house.
Key Benefits:
- Prevents unnecessary modifications to walls, ceilings, and floors.
- Ensures compliance with electrical codes and safety standards.
- Allows for better coordination with architects and engineers.
2. Cost-Effectiveness
Installing electrical systems during construction is far more economical than doing it later. Retrofitting electrical wiring into an already-built structure requires additional labor, materials, and potential demolition work.
How it Saves Money:
- Eliminates the need to break walls for wiring installation.
- Reduces labor costs and rework expenses.
- Avoids additional permits and inspections for post-construction modifications.
3. Compliance with Electrical Codes
Most countries, including the Philippines, require adherence to specific electrical codes such as the Philippine Electrical Code (PEC) or the National Electrical Code (NEC) in the U.S. Planning electrical work during construction ensures compliance with these regulations, reducing the risk of failed inspections or the need for costly corrections.
Key Considerations:
- Proper placement of circuit breakers and grounding systems.
- Adequate spacing for electrical outlets and switches.
- Use of the correct wire size and conduit materials.
4. Safety and Reduced Fire Hazards
A properly installed electrical system minimizes the risk of electrical faults, short circuits, and fire hazards. Electrical work done during construction allows for safe routing of wires and installation of protective devices like circuit breakers, ensuring long-term safety.
Safety Benefits:
- Reduces exposed wiring and potential tripping hazards.
- Ensures secure grounding and bonding of electrical components.
- Minimizes risks of electrical fires due to faulty wiring.
5. Energy Efficiency and Smart Home Integration
With the growing demand for energy-efficient homes, early planning of electrical installations allows for the integration of smart home systems, LED lighting, solar panels, and energy-saving electrical layouts.
Modern Electrical Features to Consider:
- Smart lighting and automation.
- Solar power integration.
- Energy-efficient appliances and outlets.
6. Convenience and Future Expansion
If electrical work is done during construction, homeowners can plan for future expansions, additional outlets, and smart home upgrades without major renovations.
Future-Proofing Your Home:
- Install extra conduits for future wiring needs.
- Plan for additional power outlets and USB charging ports.
- Consider home automation and security system integration.
Detailed Breakdown of Electrical Installation During House Construction
Proper electrical installation during house construction follows a systematic approach to ensure efficiency, safety, and compliance with electrical codes. Below is a step-by-step guide on how electrical installation is integrated into the construction process.
Step 1: Electrical System Planning and Design
Before construction begins, a detailed electrical plan should be created based on the homeowner’s requirements and local electrical codes. This step ensures that all necessary electrical components are properly placed and sized.
Key Considerations in Planning:
✔ Load Calculation – Determines the total power demand of the house, considering appliances, lighting, HVAC systems, and other electrical loads.
✔ Circuit Layout – Identifies the number of circuits needed for different areas (e.g., kitchen, living room, bedrooms, etc.).
✔ Location of Outlets and Switches – Ensures convenience and accessibility while meeting code requirements.
✔ Lighting Plan – Placement of lights, LED strips, dimmers, and other lighting systems.
✔ Smart Home Features – Integration of home automation, security systems, and energy-efficient solutions.
Pro Tip: Work with a licensed electrical engineer to ensure the design meets the Philippine Electrical Code (PEC) requirements.
Step 2: Installation of Conduits and Electrical Boxes
This step is typically done before walls, ceilings, and floors are finished to avoid modifications later.
Installation Process:
✔ Marking Outlet, Switch, and Junction Box Locations – Based on the blueprint, electricians mark where these will be installed.
✔ Laying Out Electrical Conduits – PVC or metal conduits are installed inside walls, ceilings, and floors to house the electrical wiring safely.
✔ Mounting Electrical Boxes – Securely fix boxes for switches, outlets, and lighting fixtures.
✔ Planning for Future Expansion – Install extra conduits for future wiring needs (e.g., additional circuits, internet cabling, etc.).
Pro Tip: The PEC requires that outlets be spaced every 1.8 meters (6 feet) along walls in living areas and 1.2 meters (4 feet) in kitchens to prevent excessive use of extension cords.
Step 3: Rough Wiring Installation
After the conduits and boxes are set up, electricians pull wires through the conduits, ensuring proper wire sizing and routing.
Wiring Best Practices:
✔ Use the Correct Wire Gauge – Wire size depends on the circuit load (e.g., 2.0mm² for general lighting, 3.5mm² for power outlets, and 5.5mm² for air conditioners).
✔ Color Coding Wires – Standard practice for easier identification (e.g., black/red for live wires, white/gray for neutral, green for grounding).
✔ Separate High-Power and Low-Power Wires – Prevents electrical interference between power cables and communication cables (e.g., internet or telephone lines).
✔ Ensure Proper Grounding – Ground wires must be properly connected to the grounding rod or electrode to prevent electrical hazards.
Pro Tip: To prevent voltage drops, the PEC requires that the total length of wiring runs should not exceed 50 meters without an upsized conductor.
Step 4: Installation of Electrical Panel and Circuit Breakers
The electrical panel, also known as the load center, is the heart of the home’s electrical system. It distributes electricity to different circuits via circuit breakers.
Key Steps:
✔ Choose the Right Panel Size – Typically, a 60A, 100A, 150A, or 200A panel is installed based on the house’s electrical demand.
✔ Install Circuit Breakers – Each major appliance or area should have a separate circuit breaker (e.g., 15A for lights, 20A for outlets, 30A for air conditioning).
✔ Connect the Main Service Line – The electrical service entrance (overhead or underground) is connected to the panel.
✔ Label Each Circuit – This makes troubleshooting and maintenance easier in the future.
Pro Tip: The main circuit breaker should be placed near the entrance of the house for easy access during emergencies.
Step 5: Testing and Inspection
Before finalizing the electrical installation, thorough testing and inspection must be conducted to ensure the system is working correctly and safely.
Testing Procedures:
✔ Continuity Test – Ensures there are no open or broken wires.
✔ Grounding Test – Verifies that the grounding system is functional.
✔ Voltage Testing – Confirms correct voltage levels across different circuits.
✔ Load Test – Checks if the system can handle expected loads without overheating or voltage drops.
✔ Insulation Resistance Test – Ensures there are no insulation faults that could cause short circuits.
Pro Tip: In the Philippines, a Certificate of Final Electrical Inspection (CFEI) from the local government unit (LGU) or electrical inspector is required before a permanent electrical connection is approved by the utility provider.
Step 6: Installation of Electrical Fixtures and Devices
Once the walls and ceilings are finished, electricians install outlets, switches, lighting fixtures, fans, and other electrical devices.
Final Installations Include:
✔ Power Outlets and Switches – Ensure they are securely mounted and aligned properly.
✔ Lighting Fixtures – Install chandeliers, recessed lighting, LED lights, or pendant lamps.
✔ Ceiling Fans and Exhaust Fans – Securely install and test for stability.
✔ Home Automation Systems – Install smart switches, security cameras, and Wi-Fi-controlled devices.
✔ Surge Protectors – Protect sensitive appliances from power surges.
Pro Tip: Install GFCI (Ground Fault Circuit Interrupter) outlets in wet areas (kitchen, bathroom, outdoor spaces) to prevent electrocution.
Step 7: Final Inspection and Power Connection
Before energizing the electrical system, a final inspection is conducted to ensure compliance with electrical codes and safety standards. Once approved, the power utility company connects the home to the electrical grid.
What Happens in the Final Inspection?
✔ Verification of proper circuit breaker labeling.
✔ Checking wire terminations for loose connections.
✔ Ensuring all safety devices (GFCI, surge protectors, etc.) are in place.
✔ Verifying overall system grounding and bonding.
Once everything is confirmed safe, the home is energized, and all electrical systems are ready for use! 🎉
Conclusion
Installing electrical systems during house construction ensures efficiency, safety, and cost savings. By following a structured approach—from planning and conduit installation to wiring, panel setup, testing, and final inspection—homeowners can avoid costly rework and potential hazards.
