Wire Gutter, Breaker Gutter, and Busbar Gutter

In electrical installations, wire gutters, breaker gutters, and busbar gutters are essential components for managing and protecting various types of electrical conductors and equipment. Each has a specific function, depending on the type of electrical conductors being used and the power distribution requirements. Below is an explanation and comparison of each gutter type:


1. Wire Gutter

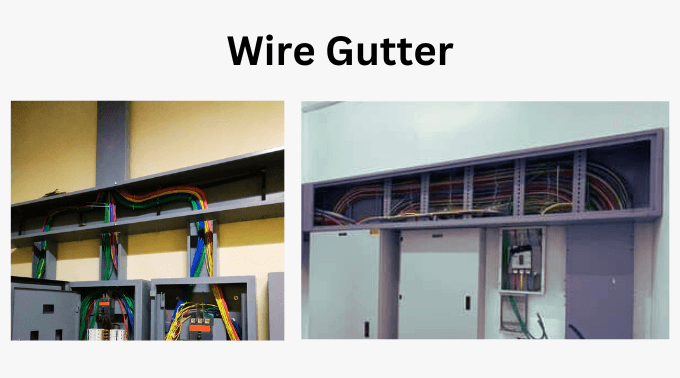

A wire gutter (also known as a wiring trough or cable trough) is an enclosure designed to house and protect electrical conductors. It is commonly used to route and organize wires within electrical systems to prevent tangling, provide easy access for maintenance, and ensure compliance with electrical codes.

Key Features:

  • Material: Typically made from galvanized steel, aluminum, or non-metallic materials like PVC.
  • Size: Sized to accommodate conductors based on their number and size, ensuring that wire fill does not exceed code requirements.
  • Access: Removable covers allow easy access for wire installation, inspection, and maintenance.
  • Code Compliance: Installed in line with the Philippine Electrical Code (PEC) to ensure conductor spacing and wire fill limits are adhered to.

Common Uses:

  • Organizing and protecting control wiring in panels, switchboards, and distribution boards.
  • Providing a neat, organized solution for routing conductors between devices or panels.
  • Safeguarding conductors from mechanical damage, dirt, moisture, and debris.

Example:

In a control panel with numerous control wires running to various devices, a wire gutter organizes the conductors, reducing clutter and ensuring safety.


2. Breaker Gutter

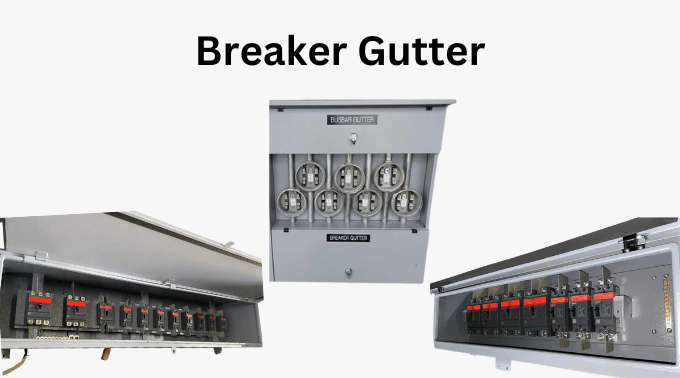

A breaker gutter refers to the space or enclosure within an electrical panel or switchboard specifically designated for circuit breakers and their connections. Breaker gutters are critical in ensuring the safe and organized routing of wires from the load side of the breakers to their respective circuits.

Key Features:

  • Material: Usually made from the same material as the panelboard or switchboard—typically steel or aluminum.
  • Arrangement: Houses circuit breakers, with enough room for wires to be routed neatly and in compliance with electrical codes.
  • Access: Like wire gutters, breaker gutters provide easy access for maintenance, modification, and circuit breaker replacement.
  • Clearance: Provides adequate clearance and separation between circuit breakers to prevent overcrowding and allow proper heat dissipation.

Common Uses:

  • Houses breakers in main switchboards, panelboards, and distribution panels.
  • Ensures that there is enough space for wiring between the circuit breakers and the external circuits they protect.
  • Provides a protective enclosure for live connections, reducing the risk of short circuits or electrical faults.

Example:

In a commercial building’s electrical panel, a breaker gutter provides space for multiple circuit breakers, allowing wires to be routed safely from the breakers to different sections of the building.


3. Busbar Gutter

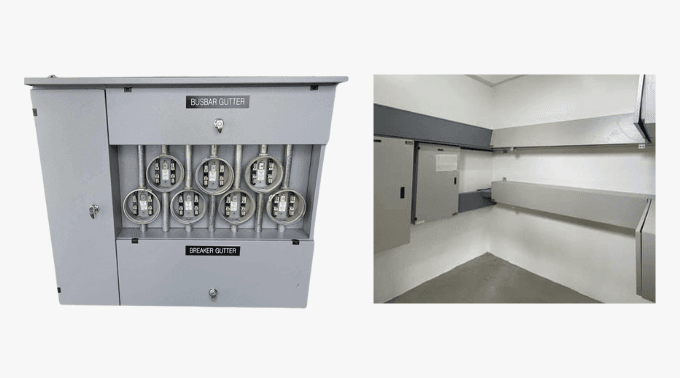

A busbar gutter is an enclosure specifically designed to house busbars, which are solid strips of copper or aluminum used for high-current power distribution. Busbar gutters handle significant electrical loads and are commonly found in industrial and large commercial installations where substantial amounts of electricity need to be distributed efficiently.

Key Features:

  • Material: Typically made from strong, heat-resistant metals like steel or aluminum.
  • Size: Larger than wire and breaker gutters, as busbars require more space for mounting and for air circulation to prevent overheating.
  • Heat Dissipation: Due to the large amounts of current carried, busbar gutters often include ventilation or cooling mechanisms to manage heat generated by the busbars.
  • Clearance and Safety: Designed to ensure sufficient clearance between busbars and the gutter walls, preventing electrical arcing and maintaining safe operation at high voltages.

Common Uses:

  • Power distribution in switchgear, substations, and large industrial or commercial installations.
  • Central points of power distribution, with busbars connecting transformers, switchgear, and distribution panels.
  • High-current applications, where the use of busbars is necessary to avoid conductor overheating.

Example:

In an industrial facility with high power demand, busbars within busbar gutters distribute electricity from a transformer to various sections of the facility, ensuring efficient and safe power delivery.


Comparison: Wire Gutter, Breaker Gutter, and Busbar Gutter

FeatureWire GutterBreaker GutterBusbar Gutter
PurposeOrganizes and protects conductors (wires)Houses circuit breakers and organizes associated wiringHouses busbars for high-current power distribution
MaterialSteel, aluminum, PVCSteel, aluminumSteel, aluminum
SizeSmall to medium, based on conductor fillSized to accommodate breakers and wiringLarge, allowing space for busbars and heat management
Components ManagedInsulated conductors (wires)Circuit breakers and associated wiringBusbars (typically uninsulated copper or aluminum bars)
VentilationLight ventilation for heat dissipationGenerally not ventilated; focused on breaker spacingSubstantial ventilation or active cooling for heat control
Primary ApplicationControl panels, switchgear, electrical enclosuresSwitchboards, distribution panels, load centersHigh-current distribution in industrial or commercial setups
AccessRemovable covers for conductor installation/maintenanceFront access to breakers for installation/maintenanceVentilated or hinged covers for access to busbars
Code ComplianceAdheres to PEC for wire fill and conductor spacingAdheres to electrical codes for breaker clearance and wire routingMust comply with busbar clearance, insulation, and safety requirements

Learn more:

Panoorin ang video sa baba.

EE – METER BASE SA METER CENTER SERVICE ENTRANCE PEC BUSBAR CB GUTTER BOX MULTI METERING

Conclusion

Each type of gutter—wire gutter, breaker gutter, and busbar gutter—serves a unique purpose in electrical installations, depending on the system’s needs:

  • Wire gutters focus on organizing and protecting electrical conductors in control panels, switchgear, and similar installations.
  • Breaker gutters are dedicated spaces in panelboards for housing circuit breakers and managing the wires connected to them.
  • Busbar gutters house high-capacity busbars, distributing large amounts of electricity efficiently and safely in industrial or commercial environments.

Understanding these components and their applications ensures safer and more efficient electrical installations, helping to meet the requirements of the Philippine Electrical Code.
