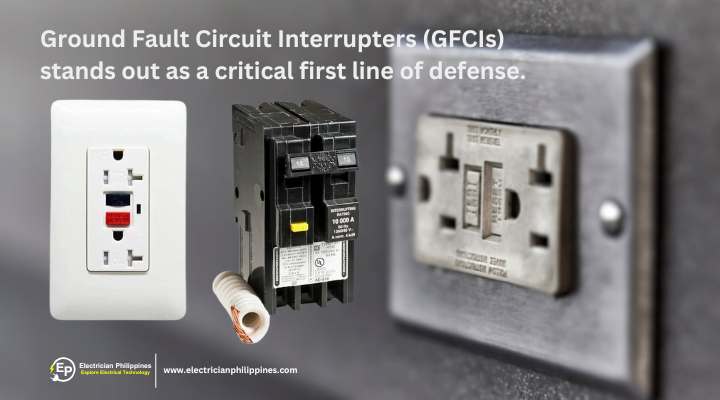

Electricity is a powerful and essential part of modern life, enabling countless conveniences and necessities. However, it also poses significant risks if not managed properly. Among the various safety devices designed to protect individuals from electrical hazards, Ground Fault Circuit Interrupters (GFCIs) stands out as a critical first line of defense. This article delves into the importance of GFCIs, how they work, and practical tips for ensuring electrical safety in various environments.
Understanding Ground Fault Circuit Interrupters (GFCIs)
What is a GFCI?
A Ground Fault Circuit Interrupter (GFCI) is a device designed to protect people from electric shock by monitoring the electrical current flowing through a circuit. GFCIs are sensitive to the difference in current between the hot and neutral wires and can detect ground faults—unintentional electrical paths between a power source and a grounded surface. When a ground fault occurs, the GFCI quickly cuts off the electricity, preventing potential injury or fatality.
How Do GFCIs Work?
GFCIs function by continuously comparing the amount of current flowing to and from the equipment along the circuit conductors. Under normal conditions, the current going to an appliance or device should match the current returning. If there is a discrepancy as small as 4 to 6 milliamps, indicating a ground fault, the GFCI trips the circuit within milliseconds.
The rapid response of GFCIs is crucial in preventing electric shocks. For instance, if someone were to accidentally touch a live wire, causing a current to flow through their body to the ground, the GFCI would interrupt the power before the current could cause serious harm.

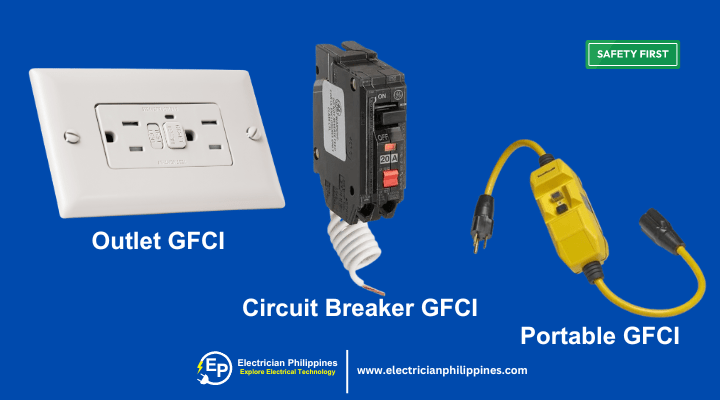

Types of GFCIs
There are several types of GFCI devices, each suited for different applications:
- Outlet GFCIs: These replace standard electrical outlets and are commonly found in bathrooms, kitchens, garages, and other areas where water may be present.
- Circuit Breaker GFCIs: Installed in the electrical panel, these protect entire circuits, providing a broader scope of protection.
- Portable GFCIs: These are used temporarily for outdoor or construction work and can be plugged into any standard outlet.
Importance of GFCIs in Electrical Safety
- Prevention of Electrical Shock
- The primary purpose of GFCIs is to prevent electric shock. Given the rapid response time of GFCIs, they significantly reduce the risk of serious injury or death by cutting off power almost instantly when a fault is detected.
- Protection in Wet Environments
- GFCIs are especially important in areas prone to moisture, such as bathrooms, kitchens, basements, and outdoor locations. Water is a good conductor of electricity, increasing the risk of electrical shock in these environments. By installing GFCIs, the likelihood of a dangerous ground fault occurring is minimized.
- Compliance with Electrical Codes
- In many regions, building codes require the installation of GFCIs in specific areas of new constructions and renovations. Ensuring compliance with these codes not only enhances safety but also avoids potential legal and financial repercussions.
Practical Tips for Using GFCIs
- Regular Testing
- To ensure that GFCIs are functioning correctly, they should be tested monthly. Most GFCI devices have a “test” button that, when pressed, should cause the device to trip. Pressing the “reset” button should restore power. If the GFCI does not trip or reset, it should be replaced immediately.
- Proper Installation
- Proper installation of GFCIs is crucial for their effective operation. While installing outlet GFCIs can be a DIY task for those familiar with electrical work, it’s often best to have a licensed electrician handle the installation, especially for circuit breaker GFCIs.
- Awareness and Education
- Educating household members or workers about the location and importance of GFCIs can enhance safety. Everyone should know how to test GFCIs and understand the importance of these devices in preventing electrical hazards.
- Timely Replacement
- GFCIs, like any other electrical device, can wear out over time. It’s recommended to replace GFCIs every 10 years or sooner if they fail regular testing.
Common Questions and Problems
Why Does My GFCI Keep Tripping?
Frequent tripping of a GFCI can be caused by several factors, including:
- Ground faults: Actual faults in the wiring or connected devices.
- Moisture: Water ingress into the outlet or device.
- Overloaded circuits: Excessive load on the circuit.
- Faulty appliances: Appliances with internal electrical issues.
Identifying the cause often requires systematically unplugging devices and testing the circuit.
Can I Install a GFCI Outlet Myself?
- Yes, if you have a good understanding of electrical systems, you can install a GFCI outlet yourself. However, safety is paramount, and if you’re unsure, it’s best to hire a professional electrician to avoid potential risks and ensure compliance with local electrical codes.
Are GFCIs Required for Outdoor Outlets?
- Yes, GFCIs are required for outdoor outlets to protect against ground faults due to the increased risk of moisture exposure. This requirement is part of many electrical codes to enhance safety in outdoor environments.

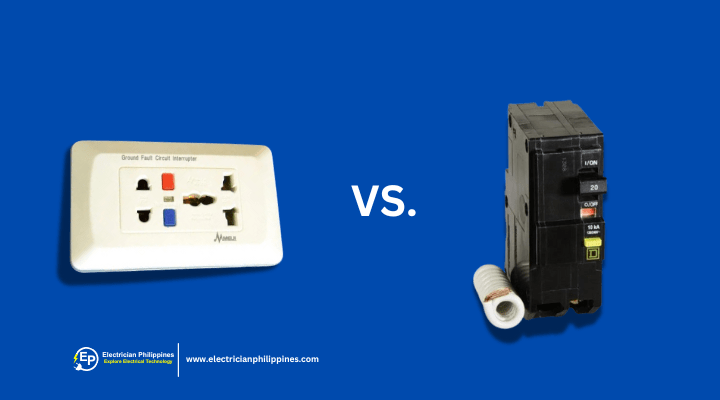

Advantages of GFCI Receptacle vs. GFCI Circuit Breaker
When it comes to enhancing electrical safety, both GFCI receptacles and GFCI circuit breakers play crucial roles in protecting against ground faults and electrical shocks. However, each type offers distinct advantages that make them suitable for different applications and environments. This article compares the advantages of GFCI receptacles and GFCI circuit breakers, helping you understand which option might be best for your needs.
GFCI Receptacles
- GFCI receptacles are individual outlets equipped with ground fault protection. They are typically installed at locations where electrical outlets are needed and where there is an increased risk of electric shock, such as in bathrooms, kitchens, basements, garages, and outdoor areas.
GFCI Circuit Breakers
- GFCI circuit breakers are installed in the electrical panel, providing ground fault protection to all outlets and devices on a specific circuit. This type of protection is beneficial for entire circuits, particularly in areas where multiple outlets or devices are used in wet or damp environments.
Advantages of GFCI Receptacles
- 1. Localized Protection
- GFCI receptacles provide localized protection directly at the point of use. This means that if a ground fault occurs at a specific outlet, only that outlet will trip, leaving other outlets and devices on the same circuit unaffected. This localized protection is beneficial in areas where frequent tripping might cause inconvenience, such as kitchens or bathrooms.
- 2. Easy Installation and Replacement
- Installing a GFCI receptacle is relatively straightforward and can often be done without professional help. This ease of installation and replacement makes GFCI receptacles a convenient option for DIY enthusiasts or for situations where only specific outlets need ground fault protection.
- 3. Cost-Effective for Small-Scale Applications
- For small-scale applications or single-outlet installations, GFCI receptacles are more cost-effective than GFCI circuit breakers. If only a few outlets require ground fault protection, installing individual GFCI receptacles can be a budget-friendly solution.
- 4. Visual Status Indication
- Many GFCI receptacles come with visual indicators, such as LED lights, that show the device’s status. This feature helps users quickly identify whether the outlet is functioning properly or if it has tripped and needs to be reset.
Advantages of GFCI Circuit Breakers
- 1. Whole-Circuit Protection
- GFCI circuit breakers provide comprehensive protection to all outlets and devices on a specific circuit. This means that every outlet on the circuit is protected from ground faults, making it ideal for areas with multiple outlets, such as outdoor circuits, basements, or workshops.
- 2. Centralized Control
- With GFCI circuit breakers, protection is centralized at the electrical panel. This centralization simplifies maintenance and troubleshooting, as any ground fault issues can be addressed at the panel rather than at individual outlets.
- 3. Enhanced Safety for Entire Areas
- GFCI circuit breakers are particularly beneficial for areas where water and electricity are likely to interact, such as pool areas, spas, and outdoor lighting circuits. By protecting the entire circuit, these breakers enhance safety in environments with an increased risk of electric shock.
- 4. Space-Saving in Older Homes
- In older homes with limited space for additional outlets, installing GFCI receptacles at every outlet might be impractical. GFCI circuit breakers provide a space-saving solution by protecting all outlets on a circuit without the need for individual GFCI receptacles.
Choosing Between GFCI Receptacles and GFCI Circuit Breakers
When deciding between GFCI receptacles and GFCI circuit breakers, consider the following factors:
- Scope of Protection Needed: If you need to protect multiple outlets on a single circuit, a GFCI circuit breaker might be more efficient. For individual outlets in isolated locations, GFCI receptacles are a practical choice.
- Installation Complexity: GFCI receptacles are easier to install for those with basic electrical knowledge. GFCI circuit breakers might require professional installation, especially in complex or older electrical panels.
- Cost: For limited applications, GFCI receptacles are more cost-effective. For broader protection, the upfront cost of a GFCI circuit breaker might be justified by the convenience and comprehensive safety it provides.
- Maintenance and Accessibility: Consider the ease of resetting and maintaining the devices. GFCI receptacles can be reset at the outlet, while GFCI circuit breakers require access to the main electrical panel.
Common Scenarios for Use
- Bathrooms and Kitchens: GFCI receptacles are ideal due to their localized protection and ease of installation.
- Outdoor Circuits: GFCI circuit breakers provide comprehensive protection for all outdoor outlets and lighting.
- Workshops and Basements: GFCI circuit breakers ensure safety in environments with multiple electrical devices and potential moisture exposure.
Conclusion
Ground Fault Circuit Interrupters (GFCIs) are a vital component of electrical safety, providing protection against electrical shocks and enhancing safety in moisture-prone areas. Understanding their operation, ensuring proper installation and regular testing, and educating users are key steps in maintaining a safe electrical environment. By taking these precautions, you can significantly reduce the risk of electrical hazards and ensure a safer living or working space.
Both GFCI receptacles and GFCI circuit breakers offer significant safety advantages, protecting against ground faults and reducing the risk of electric shock. Understanding their distinct advantages helps in choosing the right type of protection for specific needs and environments. By considering factors such as the scope of protection, installation complexity, cost, and maintenance requirements, you can ensure optimal electrical safety in your home or workplace.
